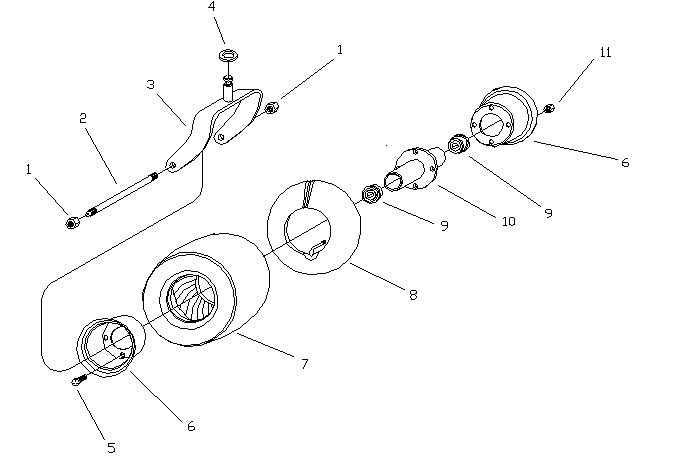

Commercial Series Caster Wheel Assembly
Parts Lists
Key |
Part |
Description |
Quan. |
No. |
No. |
Req. |
|
1 |
1780 |
Nut; Nylon Lock Jam |
2 |
2 |
5035 |
Axel; Caster |
1 |
3 |
5027 |
Caster Fork Assembly |
1 |
4 |
1310 |
Washer |
2 |
5 |
708-1 |
Hub Screw | 4 |
| 6 | Hub | 2 | |
| 7 | 5058 |
Tire; Caster |
1 |
| 8 | 5059 |
Tube; Tire |
1 |
| 9 | 1059-B |
Bearing |
2 |
| 10 | 5028 |
Caster Hub Assembly |
1 |
| 11 | 724- 1 |
Nut |
4 |
