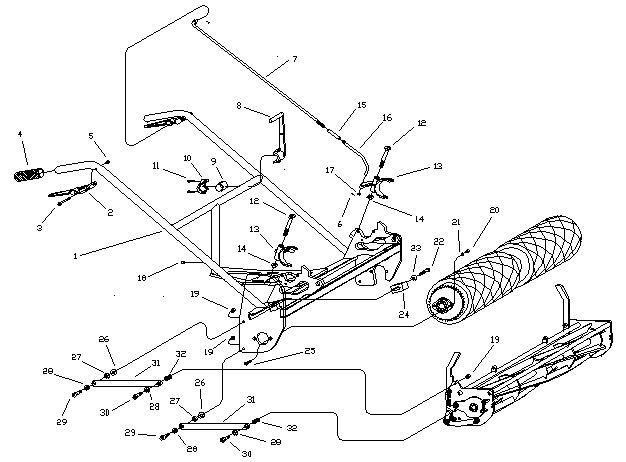

Commercial Series Frame Assembly - Right Side


Parts Lists

Key

Part

Description

Quan.

No.

No.

Req.

1

5200-25

Frame Assembly; 25'

1

520 ' 0-30

Frame Assembly; 30'

1

2

5026

Clutch Hand Lever

2

3

5079

Screw; Cap

2

4

5051

Grip; Handlebar

2

5

5083

Nut; Nylon Jam Lock

2

6

1893

Pin; Cotter

4

7

5098

Rod; Clutch

1

9

1866

Bushing; Nylon

1

10

1865

Cap

1

11

796

Screw

2

12

5076

Screw; Cap

2

13

1210-1

Clutch Fork

2

14

777-J

Nut; Jam

2

15

5101

Coupler; Clutch Rod

2

16

5099

Rod; Angle Left

1

5100

Rod; Angle Right

1

17

923

Washer

2

18

5096

Screw; Caster Pin

1

19

724-JI

Nut; Jam

4

20

744-1

Nut

4

21

3269

Washer; Lock

4

22

892-1

Screw; Cap

1

23

1595

Washer

1

24

5012

Adjuster; Chain

1

25

5081

Screw; Axel Bearing

4

26

778

Washer

2

27

1357

Washer

2

28

5046

Bushing

4

29

5048

Bolt; Frame Arm

2

30

5049

Bolt; Reel Arm

2

31

5044

Arm; Link

2

32

5067

Spring

2
