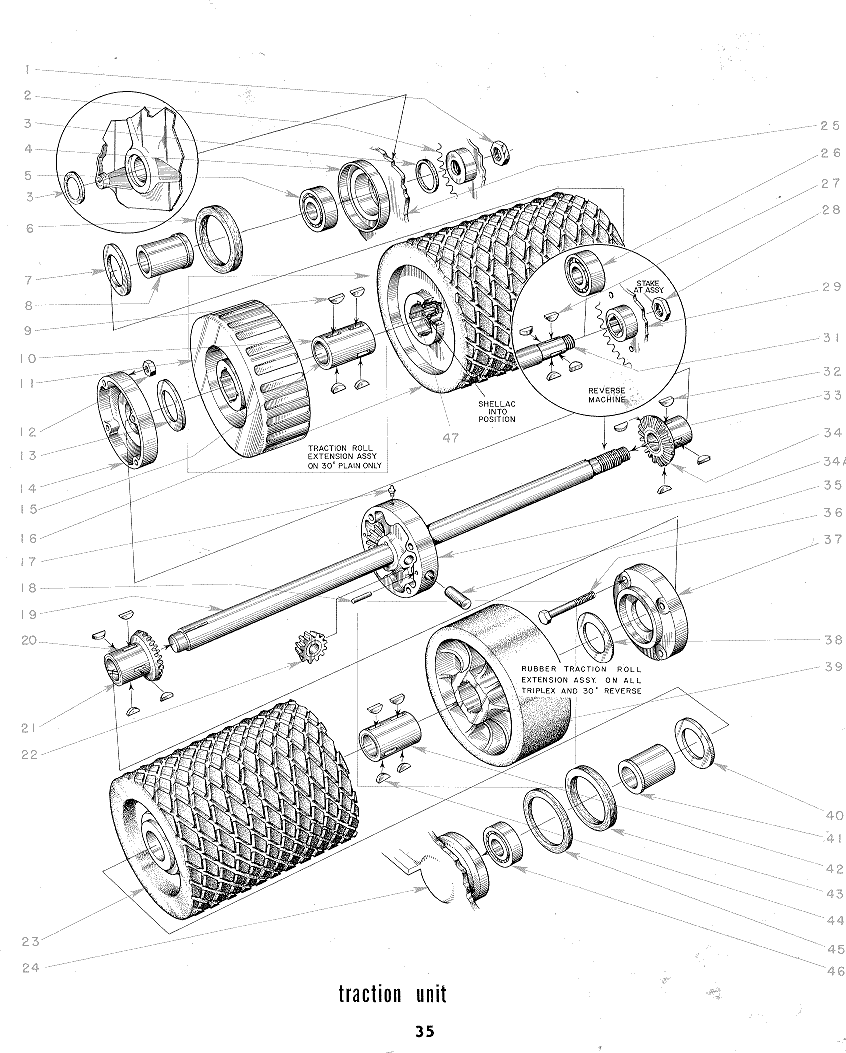

Parts List Number 10

see below for parts list


Parts List

KEY

PART

PART NAME

DESCRIPTION

NO.

NO.

1

2004

Tractor Roll Shaft Lock Nut

7/8 - 14 L.H. Thread

2

981-1

Tractor Rol I Shaft Sprocket

1/2 x 1/4 x .335

32T. (A I I P la in Except L ight Duty 25

3

2207

Garlock Seal

4

1385

Tractor Roll Shaft Bearing Guard Ring

5

1109-0

Ball Bearing (No Shield) Plain Machine

I x 2 x 5/8

6

1781-1

Tractor Roll Shaft Guard Ring - Inner Felt Washer ..

2 11/16 x 3 1/4 x9/16

7

1381

Hardened Thrust Washer

1 1/2 - 2 11/16 x 1/8

8

842

Tractor Roll Bronze Bushing

9

768

Woodruff Key No. 807 (A) - Heat Treated

10

1505

Tractor Roll Extension Sleeve

Includes 1 - #1483

6 - #768

11

1383-1

Tractor Roll Extension Assembly (For 30") Iron

Includes 1 - #1483

1 - #1505

4 - #768

12

724

Hex. Nut

3/8 - 24

13

1378

Shim Washer

1 7/8 x 2 11/16 x 1/8

1379

Shim Washer

1 7/8 x 2 11/16 x 3/32

1380

Shim Washer

1 7/8 x 2 11/16 x 5/32

14

854

Differential Side Plate

15

1483

Bushing for 1505 Sleeve

1.250 x 1.3125 x 1 7/8

16

1070-X3

Tractor Roll Assembly (Rubber)

Includes I - #842

1 - #1381

4 - #1868

17

1879

Hydraulic Fitting Alemite #A-1641 or Lincoln #5010

18

706

Groov-Pin

3/16 x 1 1/2

19

844-A

Tractor Roll Shaft 25 " and 70" Plain Machine

1155-A

Tractor Roll Shaft 30 " and 75" Plain Machine

20

849-P

Differential Bevel Gear

21

1830-1

Differential Gear Bushing - Bronze

22

850

Differential Bevel Pinion

23

1070-X3

Tractor Roll Assembly (Rubber)

Includes 1 - #842

1 - #1381

4 - #1868

24

963-5

Tractor Side Plate L.H., Plain Machine Triplex

Includes 1 - #1385

1 - #1781

1 - #1782

1 - #817

798-S

Tractor Side Plate L.H. Single Unit

Includes 1 - #1385

1 - #1781

1 - #1782

1 - 9817
