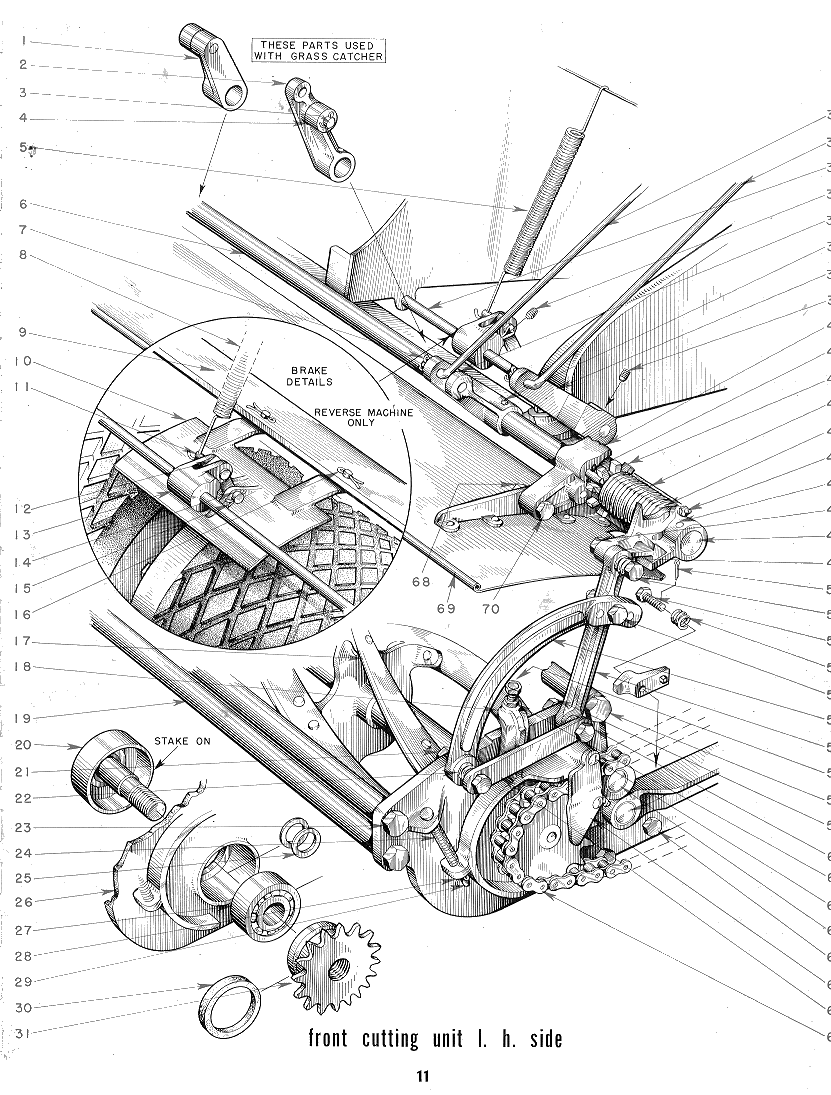

KEY

PART

PART NAME

DESCRIPTION

NO.

NO.

1

1052

Grass Box Lifting Lever

2

1051

Cutter and Grass Box Lifting Lever

3

1058

Groov Pin-Drilled

3/8 x 1 1/4

4

1057

Gross Box Lifting Lever Roll

5

2142

Parking Brake Spring - Reverse Machine

6

913

Front Cutting Unit Lifting Shaft 25 " and 70" Plain Machine

1152

Front Cutting Unit Lifting Shaft 30" and 75" Plain Machine

1836

Front Cutting Unit Lifting Shaft 701, Reverse Machine

1837

Front Cutting Unit Lifting Shaft 75" Reverse Machine

7

1893

Cotter Pin

3/32 x I /12

8

2142

Parking Brake Spring - Reverse Machine

9

1637

Tractor Cross Frame - 70" Rear Reverse Machine

1573

Tractor Cross Frame - 75" Rear Reverse Machine

10

1680-A

Brake Shoe Assembly - Reverse Machine

11

1679

Broke Clevis Pin

12

1677

Bra Link

13

1674

Brake Link Lever

14

1679

Brake Clevis Pin

15

1893

Cotter Pin

3/32 x 1/2

16

1893

Cotter' Pin

3/32 x 1 1'2

17

867

25 " Cutter Ree I and Shaft A ssemb ly - 5 Blade

1135

30" Cutter Reel and Shaft Assembly - 5 Blade

18

2056-2

Cutter Reel Bearing Bracket - L.H. Malleable Iron - Includes I - #134ON Bushing

2056-D

Cutter Reel Bearing Bracket - L.H. Die Cost Includes I - #1340 N Bushing

19

900.X

25 " Cutter Unit Spacer Bar

1143.X

30" Cutter Unit Spacer Bar

20

876

Cutter Reel Bearing Guard Cup

21

724-J

Hex. Nut

3/8 - 24 Jam

22

729

Spring

9/16 x 3/8

23

1056

Bolt

1/2 - 20 x 1 1/4

24

894

Cutter Reel Pressure Spring

25

1310

Cutter Reel Ball Bearning Shim

.100" Thick

870

Cutter Reel Ball Bearning Shim

1/16" Thick

871

Cutter Reel Ball Bearning Shim

I 1/32 " Thick

872

Cutter Reel Ball Bearning Shim

.010" Thick

873

Cutter Reel Ball Bearning Shim

.005" Thick

26

888-2

Cutter Reel Side Plate L.H. - Includes 1 -#817 Stud

27

869

Ball Bearing - Single Felt Seal

28

1893

Cotter Pin

3/32 x 1/2

29

895-1

Cutter Reel Pressure Spring Pin

30

848

Felt

1 7/8 x 1 1/2 x 3/16

31

1238

Reel Sprocket 17T. Heavy Duty Used With No. 514 Chain

1234

Ree I Sprocket 17T. Light Duty or 25" Mach. with SBR6 Motor only. Used With #41 Chain

32

2110

Front Cutting Unit Elevating Rod - For 25" and 70" Plain

2111

Front Cutting Unit Elevating Rod - For 30 " with 14R6 Motor

1761

Front Cutting Unit Elevating Rod - For Reverse Machines

33

1762

Tractor Brake Rod - Reverse Machine

34

1678

Brake Shaft - Reverse Machine

35

761

Set Screw

5/16 - 24 x 7/16 Cup Point

36

1051

Cutter and Grass Box Lifting Lever

37

703

Groov Pin

3/16 x 1 1/4

38

1754

Brake Lever Reverse Machine

39

761

Set Screw

5/16 - 24 x 7/16 Cup Point,

40

758-X

Clutch Shaft Bracket L.H. - Plain Machine

757-X

Clutch Shaft Bracket R.H. - Plain Machine

1523

Clutch Shaft Bracket L.H. - Reverse Machine

1571

Front Cutter Lifting Lever Bracket - Reverse Machine

41

912

Cutter Lifting Spring Tension Collar Key

1893

Cotter Pin

3/32 x 1/2

42

911

Cutter Lifting Spring Tension Collar

43

910

Cutter Lifting Spring L.H.

909

Cutter Lifting Spring R.H.

44

908-AR

Spring Tension Cutter Lifting Lever R.H.

908-AL

Spring Tension Cutter Lifting Lever L.H.

45

1879

Hydraulic Fitting Alemite #A-1641 or Lincoln #5010

46

703

Groov Pin

3/16 x 1 114

47

724

Nut

3/8 - 24 Hex

48

915

Cutter Lifting Dog

49

729

Spring

9/16 x 3/8

50

1893

Cotter Pin

51

892

Cap Screw

3/8 - 24 x 1 1/2 Hex. Head

52

904

Screw - Drilled and Slotted

5/16 - 24 x 7/8 Hex. Head

53

129

Spring

9/16 x 3/8

54

708

Cap Screw

3/8 - 24 x I Hex. Head

55

907

Front Cutter Adjusting Segment

Includes I - #2116 Steel Bushing

56

906

Front Cutter Carrying Link L.H.

Includes 2 - #2116 Steel Bushings

57

767

Cap Screw

5/16 - 24 x 1 1/2 Hex. Head

58

1056

Bolt

1/2 - 20 x 1 1/4

59

724-J

Hex. Nut

3/8 24 Jam

60

892

Cap Screw

3/8 - 24 x 1 1/2 Hex. Head

61

744

Nut

5/16 -24 Hex.

62

1409

Round Head Screw

1/4 - 28 x 5/8

63

817

Stud

64

820

Cap Screw

3/8 - 24 x 1 1/4 Hex. Head

65

2059-1

Cutter Reel Bearing Bracket Chain Guard Used with 2056-2

2059

Cutter Reel Bearing Bracket Chain Guard - Used with 2056-D and Old Style 2056-1

66

891

Cutter Reel Bearing Bracket Strap

67

1744

Cutter Chain - Reverse -Mowers

1/2 x 1/4 x .335 - 63.5 Long #514

1257

Cutter Chain 25" ,L ight Duty Mower Only

1/2 x 1/4 x .306 - 60.5 Long # 41

1258

Cutter Chain 25 ",Heavy Duty and 30" Mowers

1/2 x 1/4 x .335 60.5 Long #514

1263

Cutter Chain Plain Triplex Mowers

1/2 x 1/4 x .335 64 " Long # 514

68

1861

Lock Nut

5/16 - 24

69

916

Gross Guard Assembly 25",and 70"

1147

Grass Guard Assembly 30 and 75"

70

746

Screw

5/16 - 24 x 1 Hex. Head
