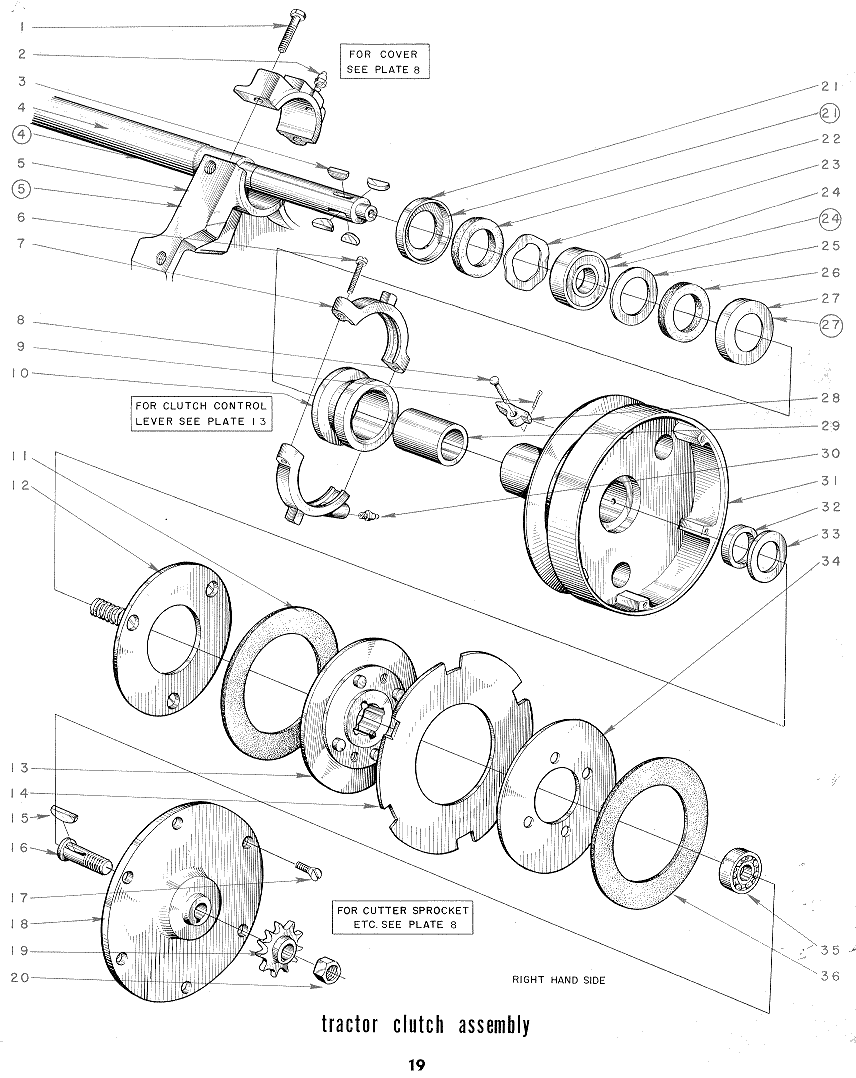

KEY

PART

PART NAME

DESCRIPTION

NO.

NO.

I

767

Cap Screw

5/16 - 24 x 1 1/2 Hex. Head

2

1879

Hydraulic Fitting Alemite #A-1641 or Lincoln #5010

3

768

Woodruff Key No. 807 (A) Heat Treated

4

1209

Clutch Shaft 25" and 70" (Plain)

1156

Clutch Shaft 30" and 75" (Plain)

1640-1

Clutch Shaft 70 Reverse Machine - Includes 1 - #1750

Reverse Machine - Includes 1 - #1750

1641-1

Clutch Shaft 75 Reverse Machine - Includes 1 - #1750

Reverse Machine - Includes 1 - #1750

5

757-X

Clutch Shaft Bracket R.H. - Plain Machine

758-X

Clutch Shaft Bracket L.H. - Plain Machine

1523

Clutch Shaft Bracket L.H. - Reverse Machine

6

796

Fillister Head Screw

10 - 32 x 1

7

795-B

Bronze Clutch Cone Thrust Collar - Triplex Machine - Includes 2 #796

795-DC

Die Cost Clutch Cone Thrust Collar Assembly -

Single Unit- Includes 2 - #796

8

792

Clutch Dog Pin

9

1891

Cotter Pin

1/16 x 3/8

10

1397

Clutch Cone

11

785

Clutch Friction Disc - Moulded Fiber

3/32 " Thick

12

1401

Clutch Pressure Plate Assembly 60#

1401-X

Clutch Pressure Plate Assembly 70#

Note: Used with 23R6 Motor only

13

956-1

Iron Clutch Driving Plate with Driving Studs -

For Any Machines

956-0

Die Cast Clutch Driving Plate with Driving Studs -

25" Machine only

14

959

Clutch Friction Disc #2

1/8 " Thick

15

776

Woodruff Key No. 606 (9) Heat Treated

16

775

Clutch Sprocket Stud

17

773

Flat Head Screw

10 - 32 x 5/8

18

955

Clutch Cover

19

1217

Tractor Clutch Sprocket 10T. 14R6 and 8R6 Motor

1/2 x 114 x .335

1230

Tractor Clutch Sprocket 10T. (On Light Duty)

1/2 x 114 x .306

25" Machine Only, For NPR6, 6R6 and 8BR6 Motors)

20

777

Hex. Nut

1/2 x 20

21

2081

Clutch Shaft Ball Bearing Felt Retainer Cap - Plain Machine

22

2082

Clutch Shaft Ball Bearing Felt - Plain Machine

1707

Clutch Shaft Felt Washer -- Reverse Machine

23

764-C

Clutch Shaft Ball Bearing Gland - Plain Machine

24

1109-0

Ball Bearing Plain Machine

1503

Ball Bearing Sealed - Reverse Machine

25

764

Clutch Shaft Ball Bearing Gland - Plain

1 5/16 x 1 31/32 x 1/16

26

2083

Clutch Shaft Ball Bearing Felt (Clutch Side)

1 15/16 x 1 1/4 x 1/4

27

2081

Clutch Shaft Ball Bearing Felt Retainer Cap - Plain Machine

27*

1500

Clutch Shaft Ball Bearing Felt Retainer Cap - Reverse Machine

28

1398

Clutch Dog

29

770

Clutch Housing Bushing - Bronze

30

1879

Hydraulic Fitting Alemite #A-1641 or Lincoln #5010

31

1165

V Broke Clutch Housing

32

771

Clutch Housing Ring Bushing

33

784

Clutch Driving Plate Hardened Thrust Washer

34

957

Clutch Driving Plate #2

35

1164

Clutch Cover Ball Bearing

36

785

Clutch Friction Disc - Moulded Fiber

3/32" Thick
