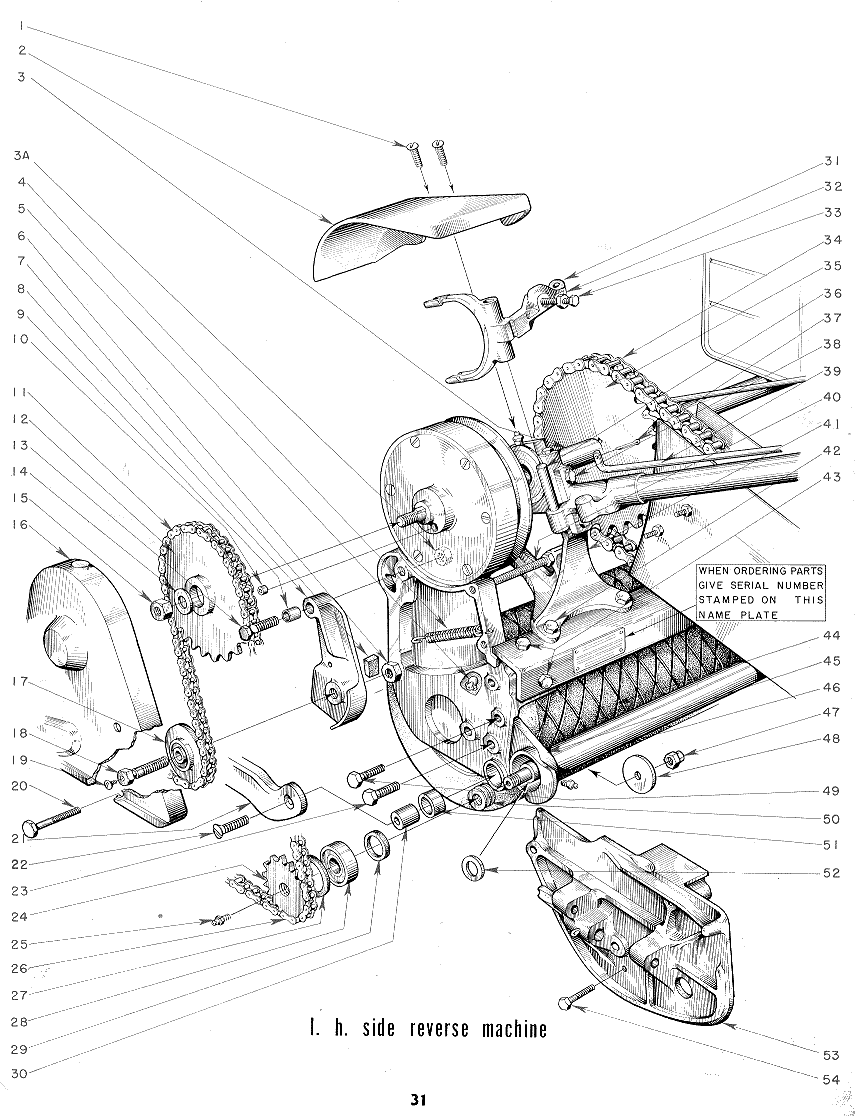

KEY

PART

PART NAME

DESCRIPTION

NO.

NO.

1

1409

Screw

1/4 - 28 x 5/8 Round Head

2

1303

Clutch Guard L.H.

3

1640-1

7011 Triplex Clutch Shaft - Reverse Machine

Includes I - #1750 Clutch Shaft Bushing

164 1-1

75" Triplex Clutch Shaft - Reverse Machine

Includes I - #1750 Clutch Shaft Bushing

3A

777

Hex, Nut

1/2 - 20

4

812

Tension Spring

5/8 x 3 1/2

5

1878

Hydraulic Fitting Alemite #A-1612 or Lincoln #5300

6

777

Hex. Nut

1/2 - 20

7

924-1

Cutter Chain Swinging Idler Hanger Bumper

8

1592

Swinging Idler Hanger - Reverse Machine

Includes 1 - # 1622

1 - #924-1

9

1622

Swinging Idler Hanger Bushing - Bronze

10

781

Clutch Sprocket Key

11

1744

Cutter Chain - Reverse Mowers

1/2 x 1/4 x .335 63 1/2" Long #514

1257

Cutter Chain - 25" Light Duty and 30"

1/2 x 1/4 x .306 60 1/2" Long #41

1258

Cutter Chain - 25" Heavy Duty and 30" Mowers

1/2 x 1/4 x .335 60 1/2" Long #514

1263

Cutter Chain - Plain Triplex Mowers

1/2 x 1/4 x .335 64" Long #514

12

1237

Cutter Clutch Sprocket 28T. - Reverse Machine

1/2 P - .335 roll

13

1730

Swinging Idler Stud - Reverse Machine

14

778

Washer

1 1/8 x 33/64 x 1/8

15

777

Hex. Nut

1/2 - 20

16

1589

Cutter Chain Guard - Reverse Machine

17

1059

Cutter Chain Idler Roll Assembly

18

805

Idler Roll Stud (Swinging)

19

1186

Screw

1/4 - 28 x 114" Long - Round Head

20

858

Cap Screw

3/8 - 24 x 1 3/4 Hex. Head

21

1587

Cutter Unit Distance Link L@H@ - Reverse Machine

Includes I - #134ON Bushing - Nylon

22

1688

L.H. Distance Link Flat Head Screw - Reverse

3/8 - 24 x 1 1/2

Machine

23

1732

Cap Screw

1/2 - 20 x I Hex. Head

24

970

Triplex Counter Shaft End Sprocket 20T.

1/2 P - .335 Roll

25

1879

Hydraulic Fitting Alemite # A-, 641 or Lincoln #5010

26

1744

Cutter Chain - Reverse Machine

1/2 x 1/4 x .335 - 63 1/2" Long #514

27

1706

Countershaft Sprocket Felt Washer - Reverse Much.

1 1/2 x 2 1/16 x 3/16

28

1766

Ball Bearing (Seal on One Side)

29

1704

Countershaft L.H. Felt Washer - Reverse Machine

1 7/32 x 1 3/4 x 3/16

30

1690

Distance Link Hardened Plug

31

1210-R

Clutch Fork, Malleable Iron - Reverse Machine

32

744

Hex. Nut

5/16 - 24

33

767

Cap Screw

5/16 - 24 x 1 1/2 Hex. Head

34

1593

Motor Chain 14R6 Motor

3/4 x 1/2 x 15/32 - 38 1/4 Long #60

35

1236

Clutch Shaft Sprocket 25T@

3/4 x 1/2 x 15/32 (1 3/16 Bore)

36

733

Groov Pin

1/2 x 3 114

37

1892

Cotter Pin

1/16 x 1/2

38

707

Cap Screw

3/8 - 24 x I Hex. Head

39

1666

Cutter Clutch Rod - Reverse Machine

40

1007

Tie Bolt

3/8 - 24 x 5 1/8

724-J

Hex. Nut

3/8 - 24 Jam

41

1523

Clutch Shaft Bracket L.H. - Reverse Machine

42

708

Cap Screw

3/8 - 24 x I Hex. Head

43

707

Cap Screw

3/8 - 24 x 3/4 Hex, Head

45

1597

Countershaft Bracket L.H. Reverse Machine

46

1638

70" Triplex Couritershaft Reverse Machine

1639

75" Triplex Countershaft Reverse Machine

47

1735

L.H. Distance Link Lock Nut - Flex Loc

3/8 - 24

48

1691

L.H. Distance Link Washer - Reverse Machine

13/32 x 1 1/2 x 3/32

49

708

Cap Screw

3/8 - 24 x 1 Hex. Head

50

1 702

Countershaft L.H. Shim Washer Reverse Machine

1 1/32 x 1 15/64 x 1/16

51

1 689

Distance Link Bushing Bronzev Reverse Machine

52

170i

L.H. Countershaft Slinger Washer-Reverse Machine

1 1/32 x 1 47/64 x 1/16

53

1585

Side Unit Pivot Bracket L.H. Assembly - Reverse hiachine

Includes I - #1447

54

2107

Cap Screw - 3 used on # 1585

3/8 - 24 x 2 1/2 Hex. Head

1764

Not illustrated-between Key No. 27 and 28 on Parts Plate

L.H. Countershaft Gland Washer

0.753 x 1 3/8 x 1/16
