For the convenience of our customers, J&M Mower now offers the Locke component parts catalog online, for free. We sell all Locke parts - even those that are no longer in production at Locke Mower Company. In those cases, we manufacture our own versions of the parts for resale.

Find the part number that you need and call us to order.

Catalog Plates for 1948 - 1958

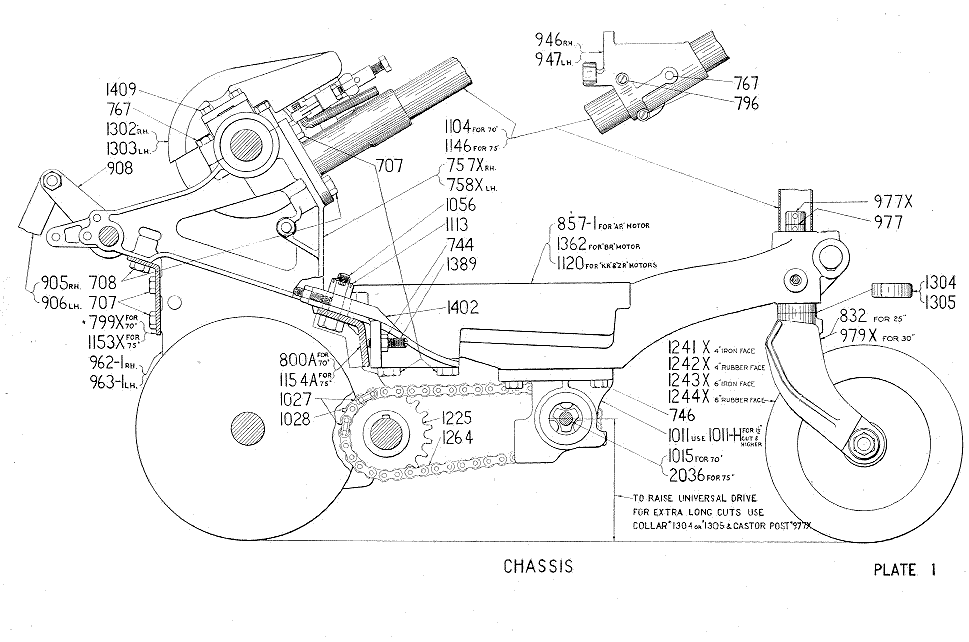

  • Plate 1 (Chassis)

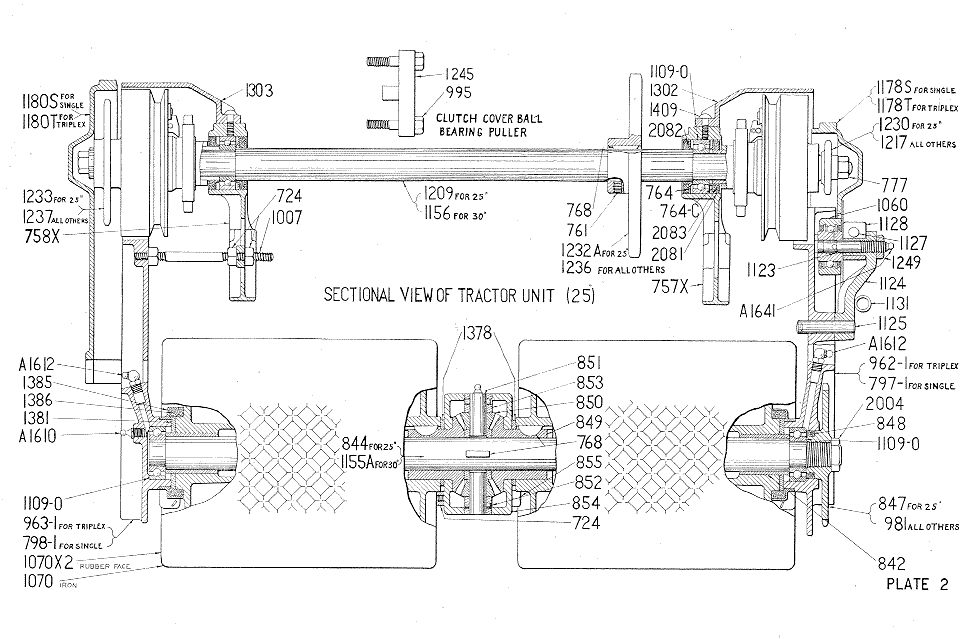

  • Plate 2 (Sectional View of Tractor Unit)

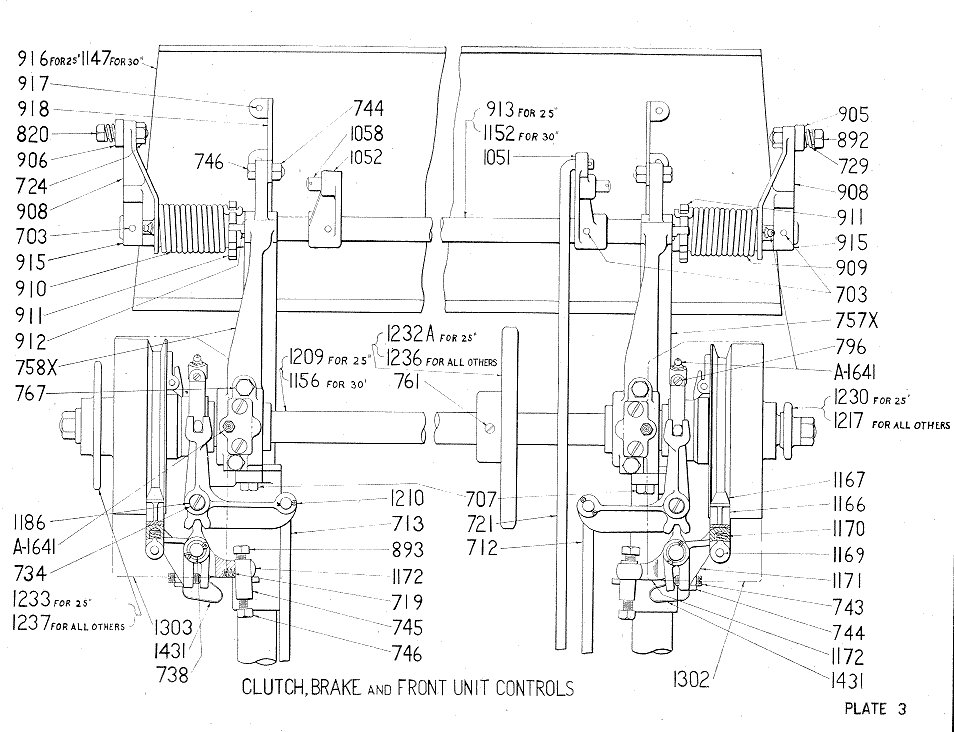

  • Plate 3 (Clutch,Brake and Front Unit Controls)

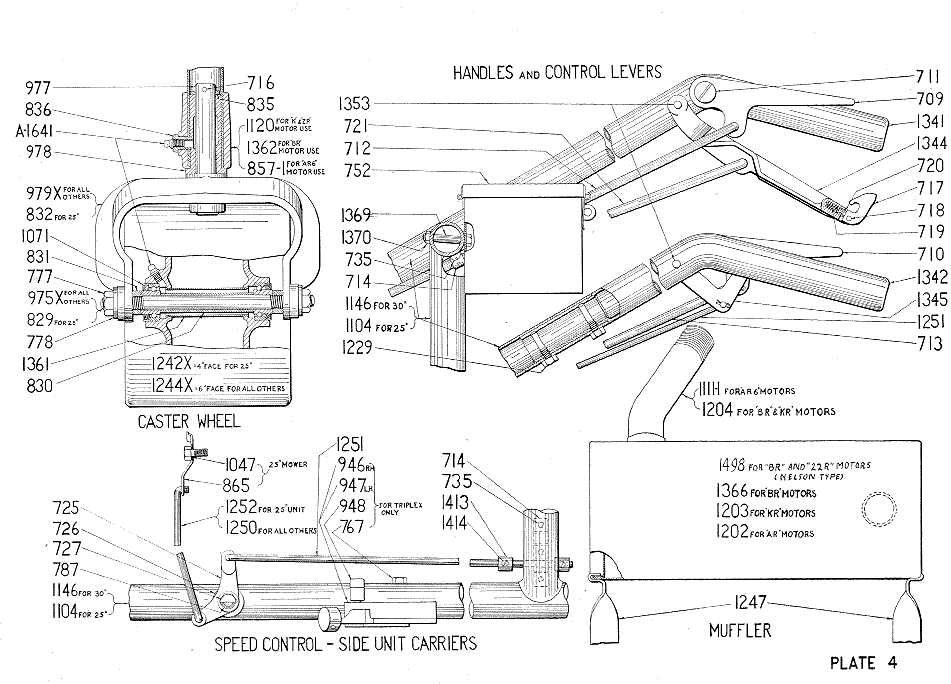

  • Plate 4 (Handles and Control Levels, Speed Control - Side Unit Carriers, Muffler)

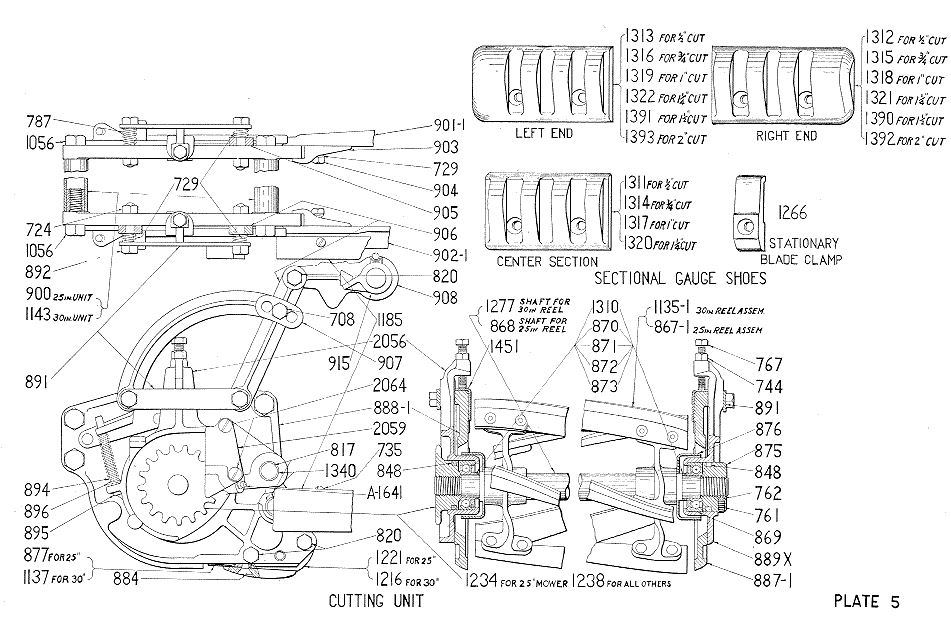

  • Plate 5 (Cutting Unit, Sectional Gauges, Shoes)

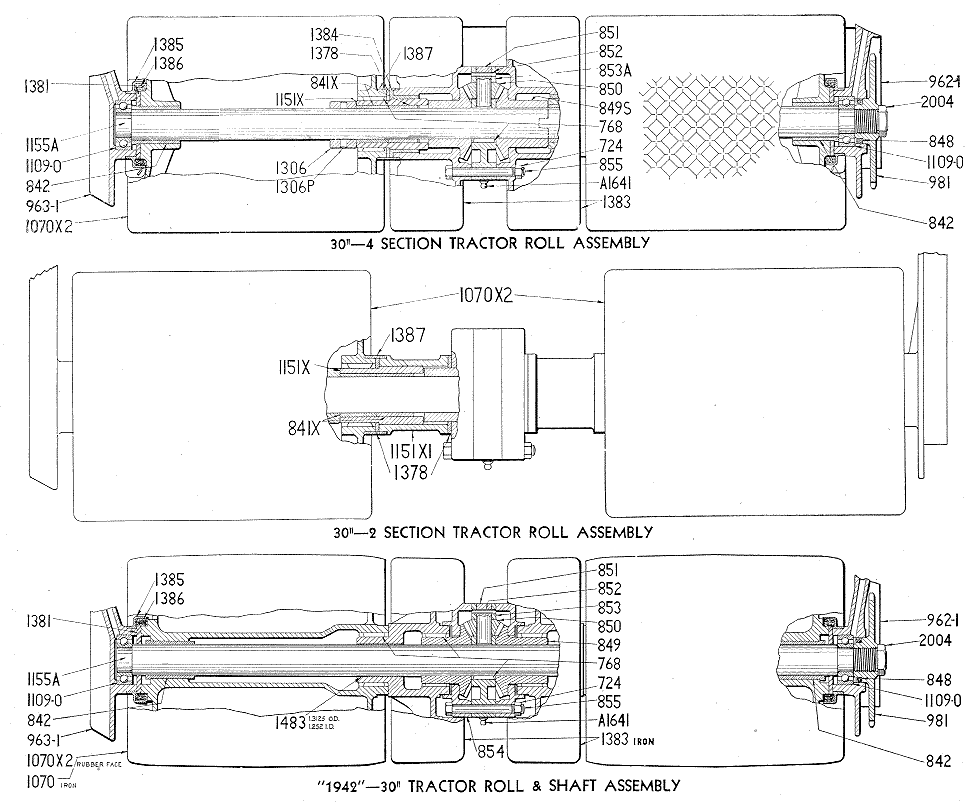

  • Plate 6 (30"-4 Section Tractor Roll Assembly, 30"-2 Section Tractor Roll Assembly, "1942"-30" Tractor Roll & Shaft Assembly)

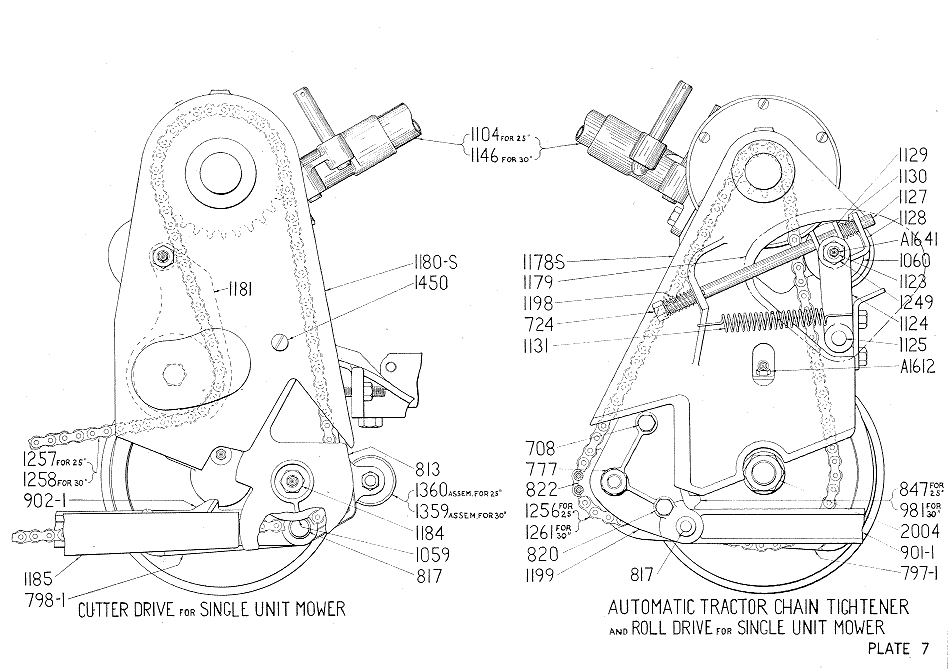

  • Plate 7 (Cutter Drive for Single Unit Mower, Automatic Tractor Chain Tightener and Roll Drive for Single Unit Mower)

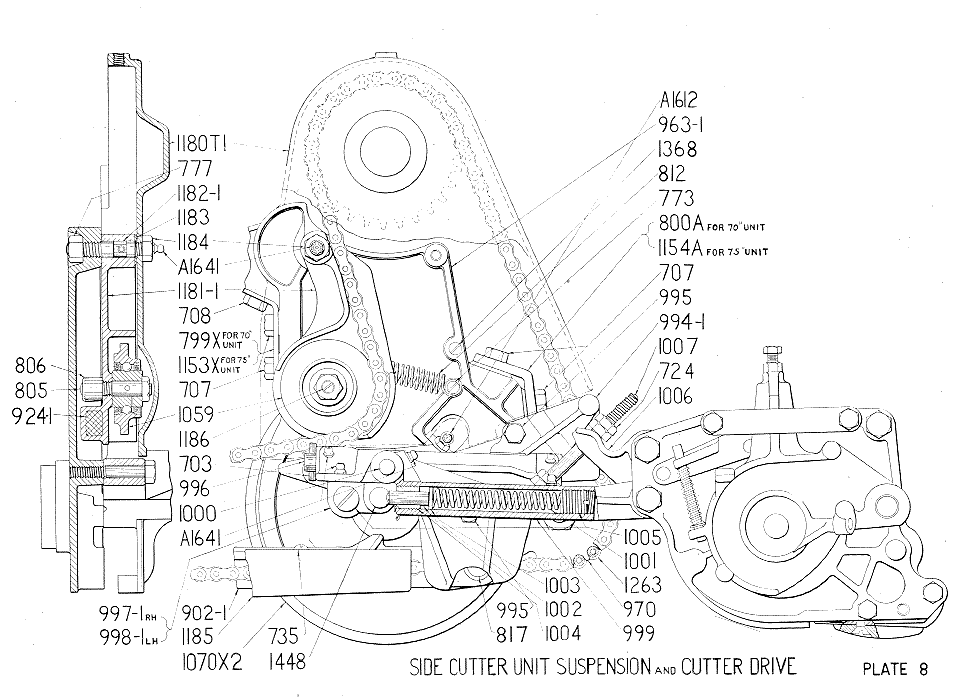

  • Plate 8 (Side Cutter Unit Suspension and Cutter Drive)

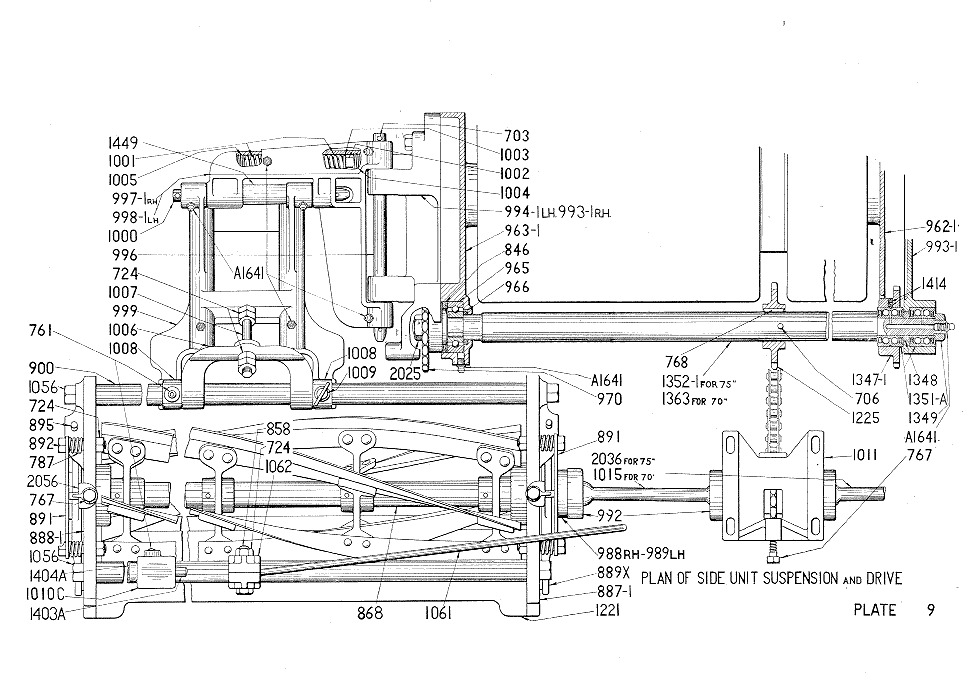

  • Plate 9 (Plan of Side Unit Suspension and Drive)

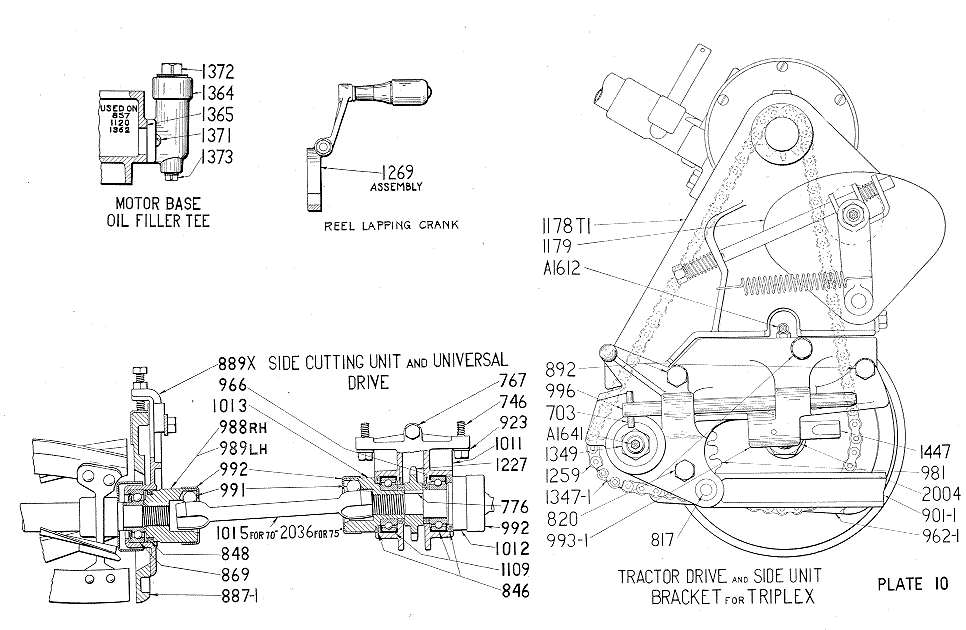

  • Plate 10 (Motor Base Oil Filler Tee, Side Cutting Unit and Universal Drive, Tractor Drive and Side Unit Bracket for Triplex)

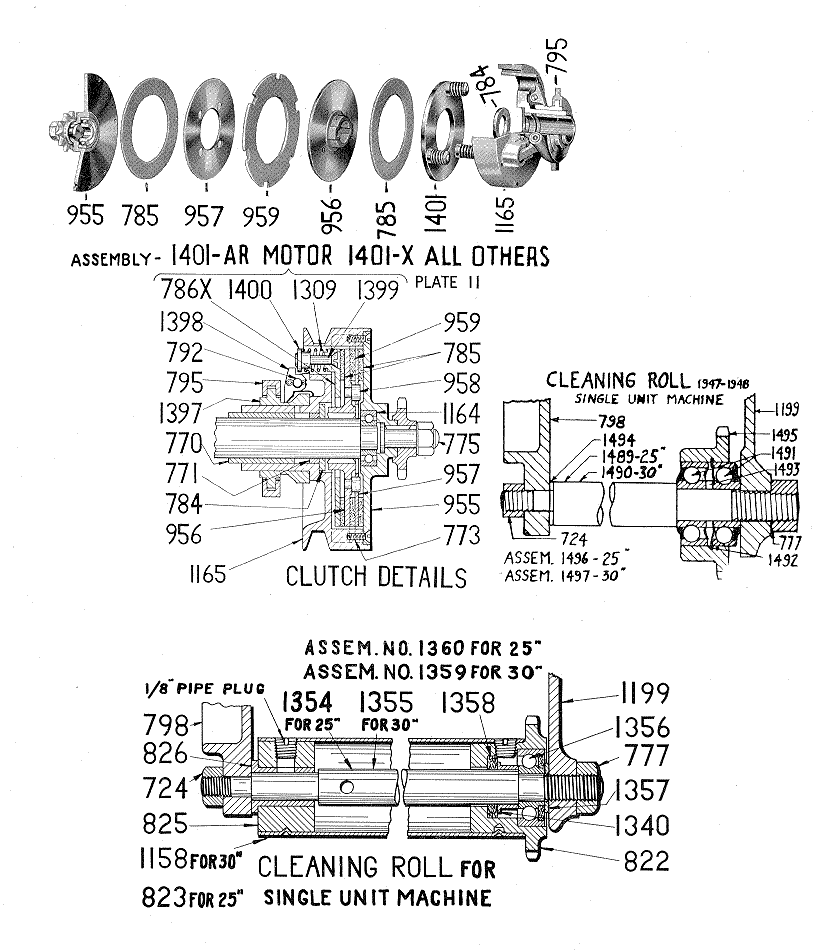

  • Plate 11 (Assembly - 1401-AR Motor 1401-x All Others, Clutch Details, Cleaning Roll for Single Unit Machine)

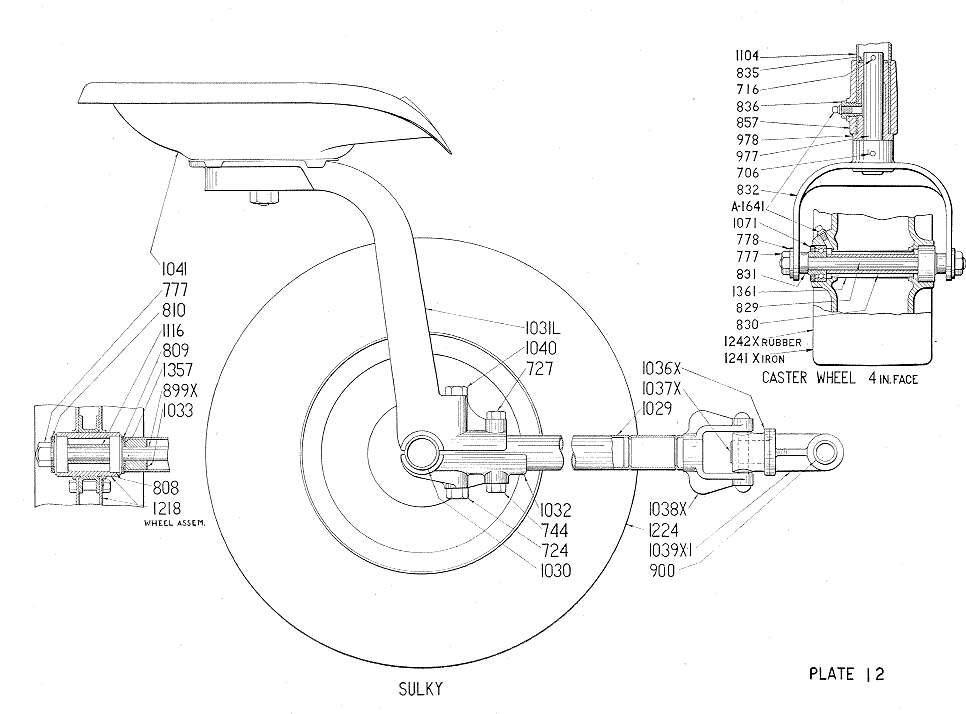

  • Plate 12 (Sulky)

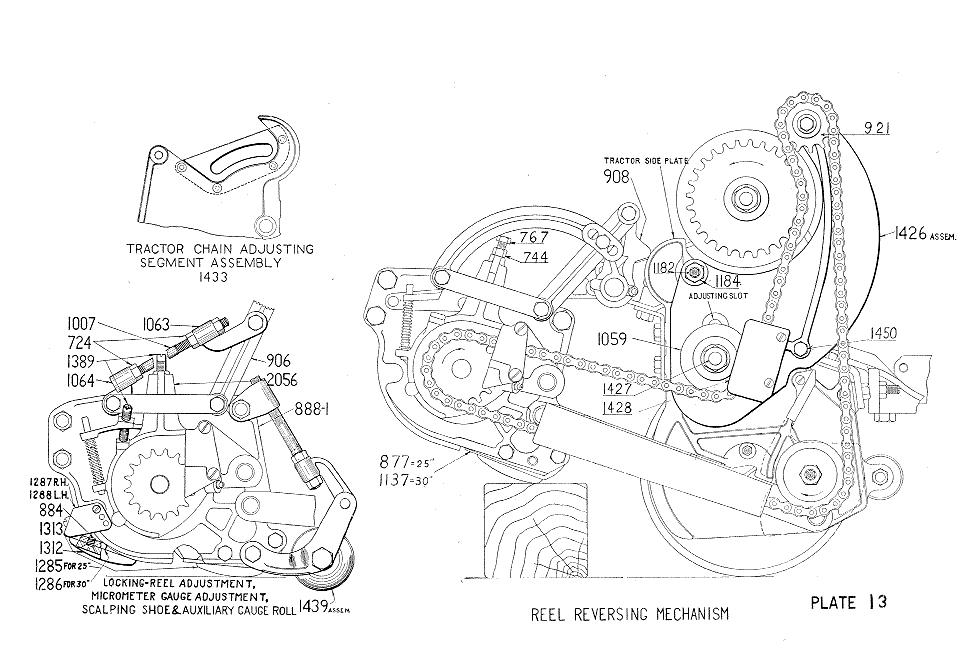

  • Plate 13 (Tractor Chain Adjusting Segment Assembly 1433, Locking - Reel Adjustment, Micrometer Gauge Adjustment, Scalping Shoes & Auxiliary Gauge Roll, Reel Reversing Mechanism)

Catalog Plates for 1959 - 1985

  • Plate 1 (Front Cutter Unit Right Hand Side)
  • Plate 2 (Front Cutter Unit Left Hand Side)
  • Plate 3 (Side Cutter Unit Suspension Right Hand Unit)
  • Plate 4 (Tractor Clutch Assembly)
  • Plate 5 (Right Hand Side Plain Triplex)
  • Plate 6 (Left Hand Side Plain Triplex and Plain Machine)
  • Plate 7 (Right Hand Side Reverse Machine)
  • Plate 8 (Left Hand Side Reverse Machine)
  • Plate 9 (Right Hand Side Single Plain Machine)
  • Plate 10 (Traction Unit)
  • Plate 11 (Large Caster Wheel and Universal Drive)
  • Plate 12 (Motor Base Assembly)
  • Plate 13 (Handle Bar Controls - Plain Mowers)
  • Plate 14 (Handle Bar Controls - Reverse Mowers)
  • Plate 15 (Motor Accessories)
  • Plate 16 (Standard Sulky)
  • Plate 17 (Reverse Sulky)
  • Plate 18 (Tools and Accessories)
  • Plate 19 (Chain Guards 25" and 30" - Single Unit with Reverse)

From the New Mower Catalogs (1986 and newer Lockes)

Commercial Series

Transmission Manuals

1961 Style Transmission Manual

1974 Style Transmission Manual

Owner's Manual

Instruction Manual for Models 2&5 Single, and 6,8,10,23 Triplex

Serial Number Lookup
