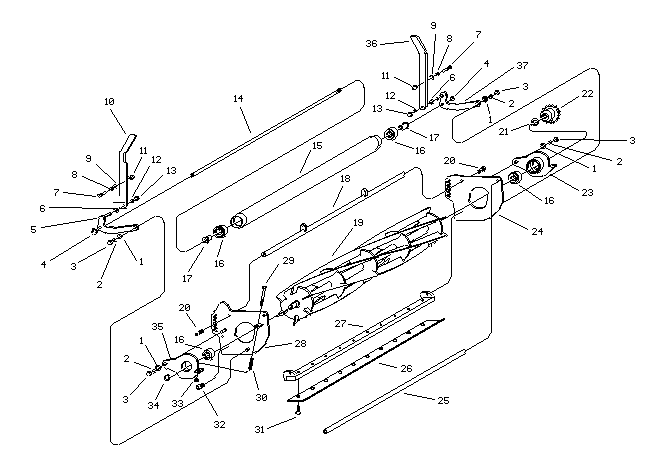

Commercial Series Reel Assembly

Parts Lists

Key

Part

Descdption

Quan.

No.

No.

Req.

1

5046

Bushing

2

2

5092

Bushing; Spacer

4

3

724-Ji

Nut; Jam

4

4

1780

Nut; Nylon Lock Jam

2

5

5021 R

Height Roller Arm-RH

1

6

5037

Bushing; 600

2

7

5038

Pin; QA

2

8

5066

Spring; OA

2

9

5091

Washer; QA

2

10

5034R

Handle; QA-RH

1

11

744

Nut

2

12

729

Spring

2

13

5084

Nut; Nylon Lock Jam

2

14

5036-25

Axel; 25"

1

5036-30

Axel; 30"

1

15

5104-25

Height Roller; 25m

1

5104-30

Height Roller; 30'

1

16

5077

Bearing

4

17

5032

Bushing

2

18

5106-25

Spacer Bar-Rear; 25"

1

5106-30

Spacer Bar-Rear; 30"

1

19

5020-25-6

Reel; 25'6 Blade

1

5020-25-8

Reel; 25" 8 Blade

1

5020-30-6

Reel; 30"6 Blade

1

5020-30-8

Reel; 30" 8 Blade

1

20

5047

Screw; Spacer Bar

4

21

1310

Shim; Reel

Varies

22

1238

Sprocket; 17T

1

23

5015

Housing; Bearing LH

1

24

5014

Side Plate; LH

1

25

5033-25

Spacer Bar; 25"

1

5033-30

Spacer Bar; 30"

1

26

5095-25

Bedknife; 25"

1

5095-30

Bedknife; 30"

1

27

5025-25

Blade Back; 25"

1

5025-30

Blade Back; 30"

1

28

5016

Side Plate; RH

1

29

5078

Screw; Adjuster

2

30

894

Spring

2

31

5072

screw; Bedknife

10 (13 on 30")

32

5072

Screw; Blade Back

4

33

5103

Nut; Nylon Lock

2

34

5075

Snap Ring; Reel

1

35

5017

Housing; Bearing RH

1

36

5034L

Handle; QA-LH

1

37

5021 L

Height Roller Arm-LH

1
