KEY

PART

PART NAME

DESCRIPTION

NO.

NO.

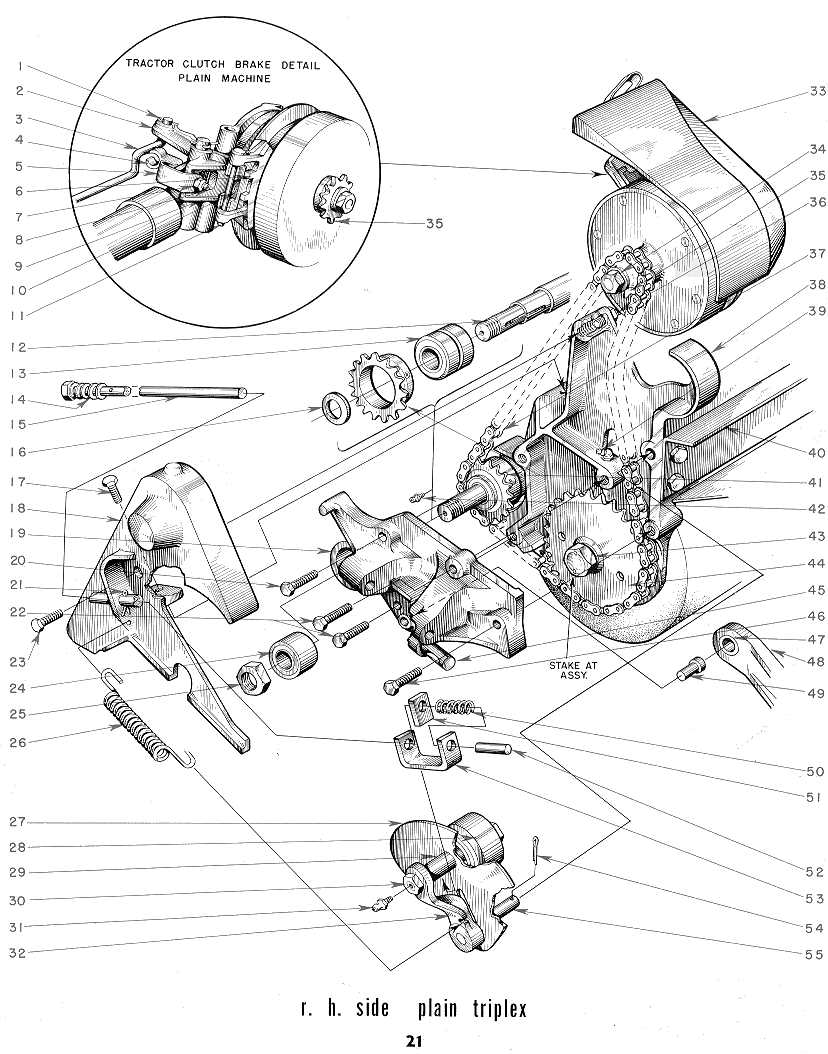

1

1891

Cotter Pin

1/16 x 3/8

2

1210-1

Clutch Fork

Malleable Iron

3

1502.1

Clutch Control Rod (Tractor) 25" and 70" with

14R6 Motor

712

Clutch Control Rod (Tractor)

4

11.72

V Broke Shoe Locking Lever

5

1431

Brake Lever Spring

6

1166-7

V Broke Shoe and Friction Block Assembly

7

744

Hex. Nut

24

8

743

Broke Adjusting Screw - Cup Point

24 x 15/16 Socket Head

Set Screw

9

1171

V Broke Shoe Lever

10

1170

V Brake Shoe Hinge Pin Spring

11

1169

V Broke Shoe Hinge Pin

12

1363-1

7011 Triplex Countershaft (After 1939)

1352-1

75" Triplex Countershaft (After 1939)

13

1351 -1

Triplex Tractor Chain Idler Ball Bearing

14

1198

Tractor Chain Tightener Rod Spring

15

1127

Tractor Chain Tightener Locking Rod

16

1348-1

Countershaft Ball Bearing Spacer

17

820

Cap Screw

3/8 - 24 x 1 114 Hex. Head

18

1178-TI

Triplex Tractor Chain Guard - Plain

19

993-1

Side Unit Pivot Bracket Assembly R,H, - Includes 1 - #1447

20

892

Cap Screw

3/8 - 24 x 1 1/2 Hex. Head

21

1894

Cotter Pin

3/32 x 1

22

820

Cap Screw

3/8 - 24 x 1 1/4 Hex. Head

23

707

Cap Screw

3/8 - 24 x 3/4 Hex. Head

24

1351

Triplex Countershaft Ball Bearing

25

1349

Countershaft Ball Bearing Lock Nut

5/8 - 18 L.H. Thread Hex Jam Nut

26

1131

Tractor Chain Tightener Arm Spring

27

1179

Tractor Chain Tightener Roll Arm Shield

28

1060

Tractor Chain Idler Roll Assembly

29

1123

Tractor Chain Tightener Idler Roll Stud

30

777

Tractor Chain Idler Roll Stud Nut

1/2 - 20 Hex. Nut

31

1879

Hydraulic Fitting Alemite #A-1641 or Lincoln #5010

32

1124

Tractor Chain Tightener Idler Roll Arm Assembly

Includes I - #1125-1

33

1302

Clutch Guard R.H.

34

777

. Clutch Sprocket Stud Nut

1/2 - 20 Hex. Nut

35

1217

Tractor Clutch Sprocket IOT

1/2 x 1/4 x .335

36

724-J

Hex. Nut

3/8 - 24 Jam

37

1261-W

Tractor Chain 37 1/2" Long, Plain Triplex

1/2 Pitch x 5/16 x .335 #515

38

962-S

Triplex Tractor Side Plate R.H. - For Sway Bar

Type Machine Assembly

Includes 1 - #1782, 1 - #1385, 1 - #1781

39

1878

Hydraulic Fitting Alemite #A-1612 or Lincoln #5300

40

799-X

Tractor Cross Frame - Front 25 " or 7011

1153-X

Tractor Cross Frame - Front 30" or 75"

41

1347-1

TractorChain Idler Sprocket (After 1939)

1350-1

Socket Set Screw

1/4 - 28 x 1/4

42

1879

Hydraulic Fitting Alemite #A-1641 or Lincoln #5010

43

2004

Tractor Roll Shaft Lock Nut

7/8 - 14 Left Hand Thread

44

981

Tractor Roll Shaft Sprocket 32T

1/2 x 1/4 x .335

45

1447

Side Unit Pivot Bracket Stop Bar

46

892

Side Pivot Bracket Cap Screw

3/8 - 24 x 1 1/2 Hex. Head

47

1340-N

Bushing - Nylon

48

901

Cutter Unit Distance Link - Includes 2 - #1340-N Bushings

49

817

Cutter Unit Distance Link Stud

50

1130

Tractor Chain Tightener Locking Dog Spring

51

1129

Tractor Chain Tightener Locking Dog

52

1127

Tractor Chain Tightener Locking Rod

53

1128

Tractor Chain Tightener Yoke

54

1894

Cotter Pin

3/32 x I

55

1125-1

Groov Pin

1/2 x 2 1/8 Bronze Drilled
