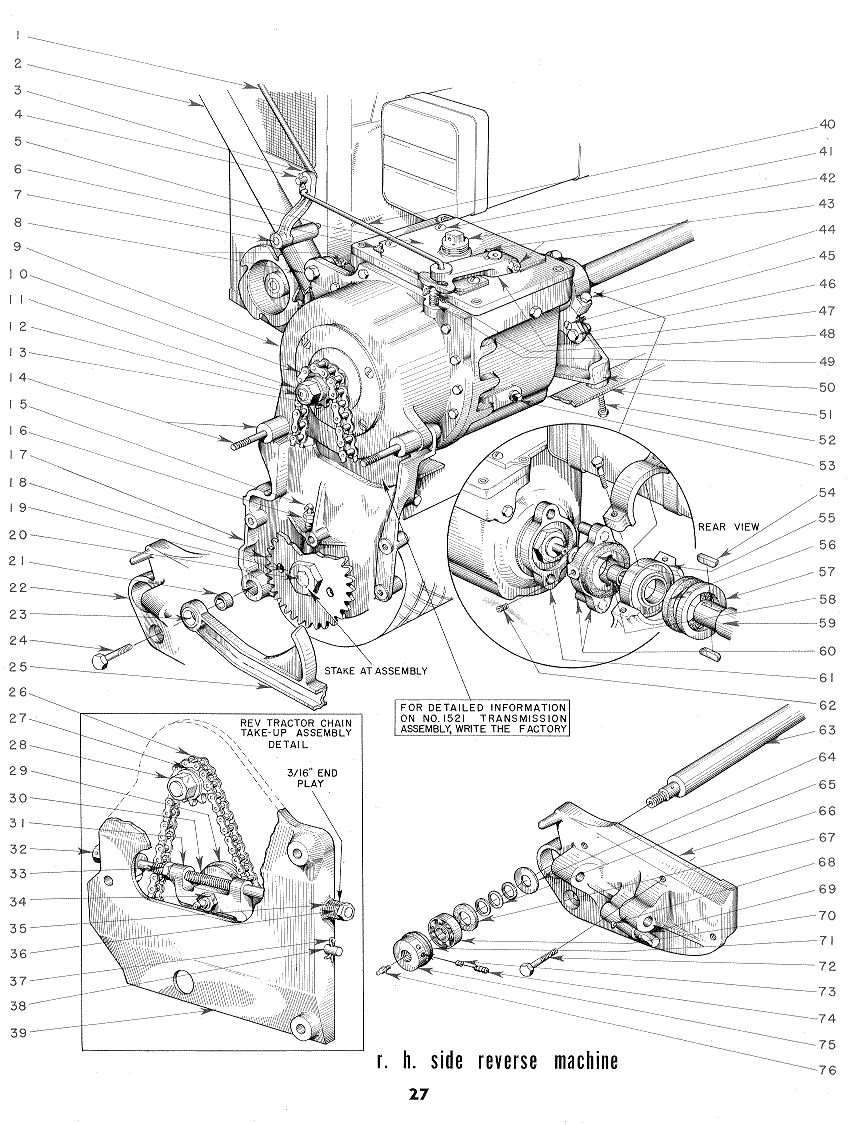

Parts List Number 7

see below for parts list


Parts List

KEY

PART

PART NAME

DESCRIPTION

NO.

NO.

I

1665

Tractor Clutch Rod - Reverse Machine

2

1685

Handle Bar Lower Assembly (With 1-705 and 1-1569 Brazed I - #733) 70

1686

Handle Bar Lower Assembly (With 1-705 and 1-1569 Brazed I - #733) 75

3

1570

Reverse Tractor Clutch Linkage Lever

Includes I - #1570

1 - #1724-1 Groov Pin

4

1893

Cotter Pin 3/32 x 1/2

5

1528-1

Reverse Gear Housing Cover Plate

6

1739

Reverse Gear Housing Cover Gasket

7

1724-1

Groov Pin Bronze - Drilled

3/8 x 2 1 /2

8

708

Cap Screw

3/8 - 24 x I Hex. Head

1735

Lock Nut

3/8 - 24 Flex Loc

9

1521

Reverse Gear Transmission Assembly Complete

10

1746-W

Tractor Chain 32 1/2" Long

1/2 x 5/16 x .335 #515

11

1734

Lock Nut

5/8 - 18 R.H. Hex.

12

1562-1

Reverse Gear Tractor Sprocket Stud

13

1563

Reverse Gear Tractor Sprocket IOT

1/2 P. - .335 Roll

14

1853

Reverse Gear Transmission Mounting Stud

3/8 - 24 x 4 1/16

1769

Tractor Chain Guard and Take-up Bracket Spacer - Reverse Machine

15

1878

Hydraulic Fitting Alemite #A-1612 or Lincoln #5300

16

1827

R.H. Tractor Side Plate Grease Fitting Hex. Extension - Reverse Machine

17

1576-5

Tractor Side Plate R.H. - Reverse Machine

Includes I - #1385, 1 - #17811 1 - #1782, 1 - #1827

18

1656

Tractor Roll Shaft Sprocket 32T. - Reverse Machine 1/2 x 1/4 k .335

19

2004

Lock Nut .

7/8 - 14 L.H. Thread

20

1643

70" Triplex Tractor Shaft - Reverse Machine

1655

75" Triplex Tractor Shaft - Reverse Machine

21

1690

Distance Link Hardened Plug - Reverse Machine

22

1584

Side Unit Pivot Bracket - R.H. Assembly - Reverse

Machine Includes I - #1447

23

1689

Distance Link Bushing Bronze - Reverse Machine

24

858

Bolt

3/8 - 24 x 1 3/4 Hex. Head

25

1586

Cutter Unit Distance Link R.H. - Reverse Machine

Includes I - #1340 Bushing

1 - #1689 Bronze Bushing

26

1746-W

Tractor Chain - Reverse Machine 32 1/2" Long

1/2 x 5/16 x .335 #515

27

1563

Reverse Gear Tractor Sprocket 10T

1/2 P. - .335 Roll

28

1734

Lock Nut

5/8 - 18 R.H. Hex.

29

1600-A

Tractor Chain Idler Roll Assembly - Reverse Machine

31

1588-1

Automatic Chain Take-up Carrier - Reverse Machine

32

1735

Lock Nut

3/8 - 24 Flex Loc

33

1184

Swinging Idler Hanger Stud Thin Nut

7/16 - 20

34

1603-1

Tractor Chain Idler Roll Stud - Reverse Machine

35

2126

Chain Take-up Spring - Reverse Machine

36

1184

Swinging Idler Hanger Stud Thin Nut

7/16 - 20

37

1896

Cotter Pin

1/8 x 3/4

38

1608

Tractor Chain Tightener Guide Rod - Reverse Machine

39

1579-1

Tractor Chain Guard and Take-up Bracket

40

1742

Tractor Clutch Linkage Rod - Reverse Machine

41

1646

Round Head Screw

1/4 - 20 x 1/2

42

1372-1

3/4" Pipe Plug Drilled

43

767

Cap Screw

5/16 - 24 x 1 1/2 Hex. Head

1861

Lock Nut

5,/16 - 24

44

767

Cap Screw

5/16 - 24 x 1 1/2 Hex. Head

45

2064

Cutter Chain Guard Screw

1/4 - 28 x I Flat Head

1370

Hex. Nut

1/4 - 28

46

1778

Cap Screw

1/4 - 28 x I Hex. Head

47

1530

Reverse Gear Clutch Shifting Lever

48

1651

7/16 " Stee I Ba I 1

49

1535

Reverse Gear Clutch Lever Ball Check Spring

50

1524-A

Clutch Shaft Bracket Assembly - Center - Reverse Machine

Machine

Includes 2 #767 Cap Screw

5/16 - 24 x 1 1/2 Hex. Head

2- #707 Cap Screw

3/8 - 24 x 3/4 Hex. Head

2- #724iJ Hex. Nut

24 Jam

2- #1370 Hex. Nut

1/4 - 28

1- #2 064 Cap Screw

1/4 - 28 x 1 Flat Head

1- #1778 Cap Screw

1/4 - 28 x I Hex. Head

51

1572

Tractor Cross Frame - 75" Front - Reverse Machine

1636

Tractor Cross Frame - 70" Front - Reverse Machine

52

707

Cap Screw

3/8 - 24 x 3/4 Hex. Head

53

1723

Reverse Gear Housing Drain Plug

1/8" Pipe

54

1558

Reverse Gear Input Shaft Driving Dog Woodruff Key

and Clutch Shaft Driver Woodruff Key

56

1707

Clutch Shaft Felt Washer - Reverse Machine

1 3/16 x 1 15/16 x 1/4

57

1500

Clutch Shaft Ball Bearing Felt Retainer Cup Reverse Machine

58

1750

Clutch Shaft Bushing - Reverse Machine

59

1640-1

70" Triplex Clutch Shaft - Reverse Machine Inc ludes I - #1750

1641-1

7511 Triplex Cluic Shaft - Reve.-se Machine Includes I - #1750

60

1642-1

Clutch Shaft Driver - Reverse Machine Includes 2 - #1758

1758

Input Driving Dog Stud - Reverse Machine

1779

Thrust Washer

7/16 x 15/16 x 1/16

61

1728

Peverse Gear Input Shaft Driver

62

761

Set Screw

5/16 - 24 x 7/16 Cup Point

63

1638

70"Triplex Countershaft - Reverse Machine

1639

75"Triplex Countershaft - Reverse Machine

64

1703

Countershaft R.H. Slinger Washer - Reverse Mach.

51/64 x 1 35/64 x 1/16

65

870

Ball Bearing Shim

1/16" Thick

66

1584

Side Unit Pivot Bracket R.H. Assembly - Reverse Machine

Includes I - #1447 Side Unit Pivot Bracket Stop Bar

67

1705

Countershaft R.H. Felt Washer - Reverse Machine

I x 1 9/16 x 3/16

68

1898

Cotter Pin

1/8 x 1 1/4

69

1447

Side Unit Pivot Bracket Stop Bar

70

869

Ball Bearing - Single Felt Seal

71

848

Felt

1 7/8 x 1 1/2 x 3/16

72

995

Cap Screw

3/8 - 24 x 2 Hex. Head

73

762

Set Screw Slug - Brass

74

761

Set Screw

5/16 - 24 x 7/16 Cup Point

75

990

Nut L.H. Thread

76

1879

Hydraulic Fitting Alemite #A-1641 or Lincoln #5010
