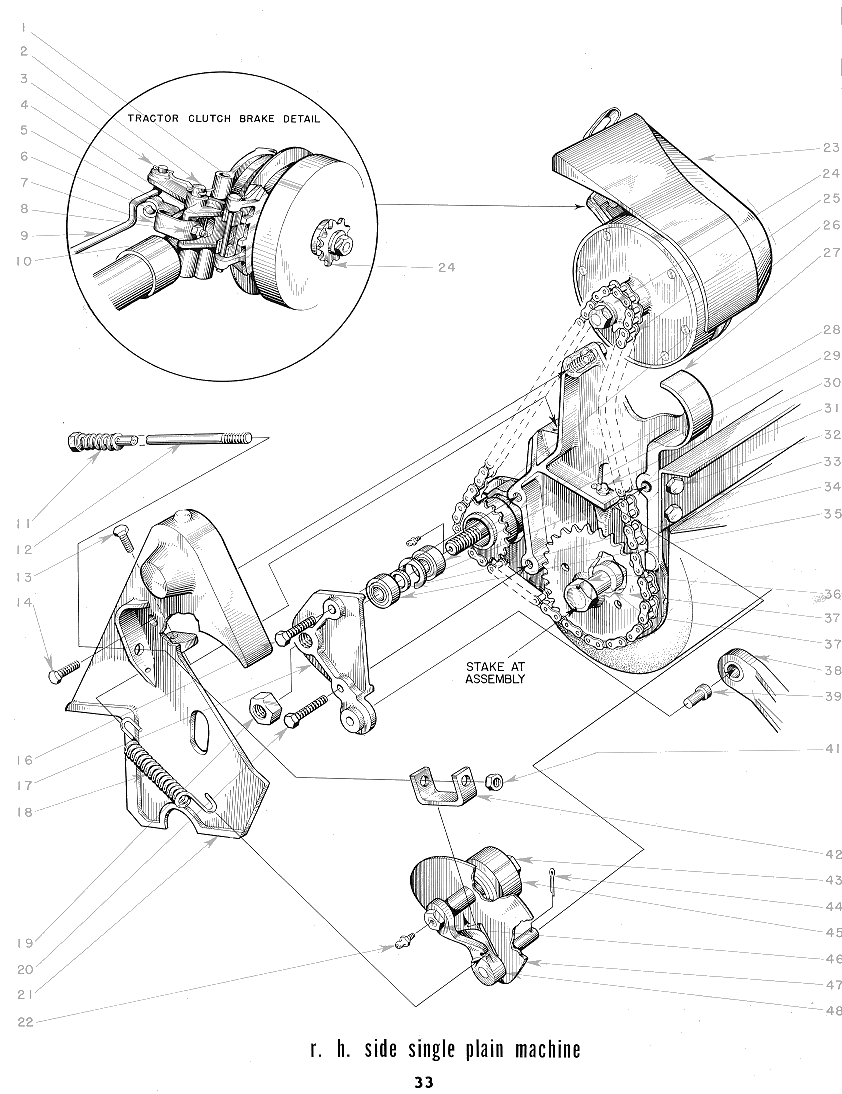

KEY

PART

PART NAME

DESCRIPTION

NO.

NO.

1

1166-7

"V" Brake Shoe and Friction Block Assembly

2

738

Groov Pin - Drilled

1/2 x 3 1/4

1897

Cotter Pin

1/8 x 1

3

1893

Cotter Pin

3/32 x i-/2

4

1170

"V" Broke Shoe Hinge Pin Spring

5

1171

"V" Brake Shoe Lever

6

1172

"V" Brake Shoe Locking Lever

7

1431

Brake Lever Spring

8

744

Hex. Nut

5/16 - 24

9

1502

Clutch Control Rod (Tractor) 25" and 70"

712

Clutch Control Rod (Tractor) All Others

10

743

Gib Screw

5/16 - 24 x 15/16

11

1198

T;rp:ctor Chain Tightener Rod Spring

12

1127

Tractor Chain Tightener Locking Rod

13

820

Cap Screw

3/8 - 24 x 1 1/4 Hex. Head

14

708

Cap Screw

3/8 - 24 x I Hex. Head

15

1894

Cotter Pin

3/32 - x 1

16

708

Cap Screw

3/8 - 24 x I Hex. Head

17

1199

Cleaning Roll Hanger Includes I - #817

18

1131

Tractor Chain Tightener Arm Spring

19

777

Hex. Nut

20

820

Cap Screw

3/8 - 24 x 1 114 Hex. Head

21

1178-5

Tractor Chain Guard - Single

22

1879

Hydraulic Fitting Alemite #A-1641 or Lincoln #5010

23

1302

Clutch Guard R.H.

24

1217

Tractor Clutch Sprocket IOT. 8R6 - 14R6

1/2 x 1/4 x .335

1230

Tractor Clutch Sprocket I OT. 8BR6

1/2 x 114 x .306

25

1813

Tractolr Chain - All Other Single Units

1/2 x 114 x .335

1256

Tractor Chain - 25" Light Duty Only

1/2 x 1/4 x .306

26

1495

Tractor Chain Idler Sprocket 16T.

27

798-5

Tractor Side Plate L.H. Includes I - #817, 1 - #1385, 1 - #1781, 1 - #1782

28

1489

25 " Tractor Chain Idler Shaft and Tie Rod

1490

30" Tractor Chain Idler Shaft and Tie Rod

29

1491

Tractor Chain Idler Ball Bearing

30

1878

Hydraulic Fitting Alemite #A-1612 or Lincoln #5300

31

1492

Ball Bearing Snap Ring

32

708

Cop Screw

3/8 - 24 x 1 Hex. Head

33

799-X

Tractor Cross Frame - Front

34

1493

Ball Bearing Spacer with Notch

5/8 - 3/4 x .100

35

1491

Tractor Chain Idler Ball Bearing

36

2004

Tractor Roll Shaft Lock Nut

7/8 - 14 L.H. Thread

37

981

Tractor Roll Shaft Sprocket 32T. - All Other Plain Machines

847

Tractor Rol I Shaft Sprocket 32T. - For 25" Light Duty

Unit 8BR6 Motor

38

901

Cutter Unit Distance Link R.H.

Includes 2 - #134ON Bushing - Nylon

39

817

Stud

40

1130

Tractor Chain Tightener Locking Dog Spring

41

1129

Tractor Chain Tightener Locking Dog

42

1128

Tractor Chain Tightener Yoke

43

1123

Tractor Chain Tightener Idler Roll Stud

44

1894

Cotter Pin

3/32 x 1

45

1060

Tractor Chain Idler Roll Assembly

46

1249

Jam Nut

1/2 - 20

47

1179

Tractor Chain Tightener Roll Arm Shield

48

1124

Tractor Chain Tightener Idler Roll Arm Assembly

Includes 1 - #1125-1
