1948-1958 Series Locke Mowers
| Plate 1 | Chassis |
| Plate 2 | Sectional View of Tractor Unit |

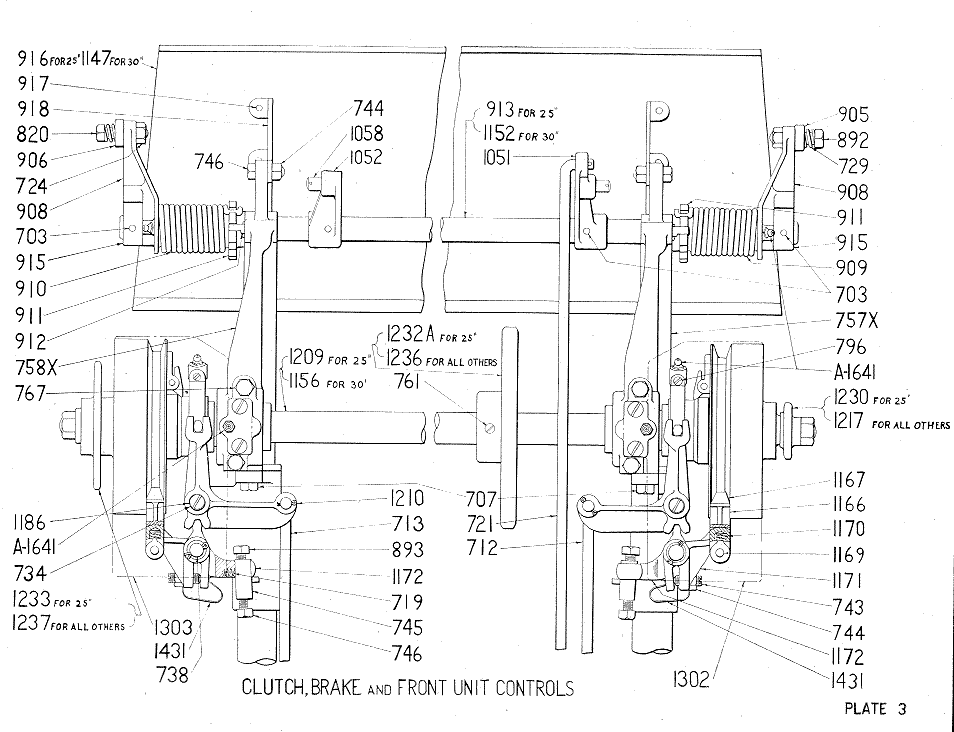

| Plate 3 | Clutch,Brake and Front Unit Controls |

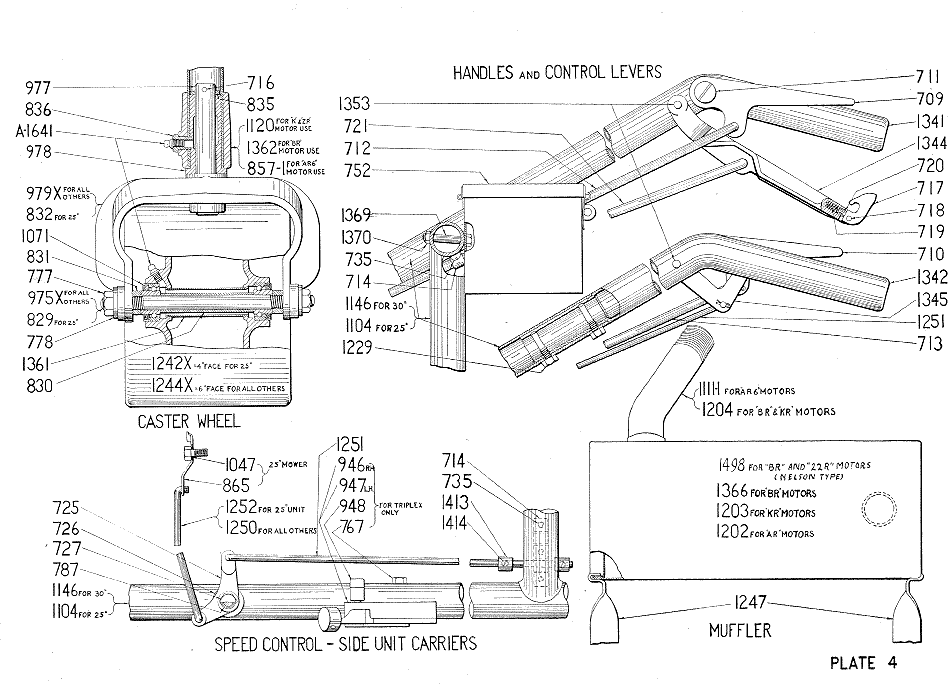

| Plate 4 | Handles and Control Levels , Speed Control - Side Unit Carriers , Muffler |

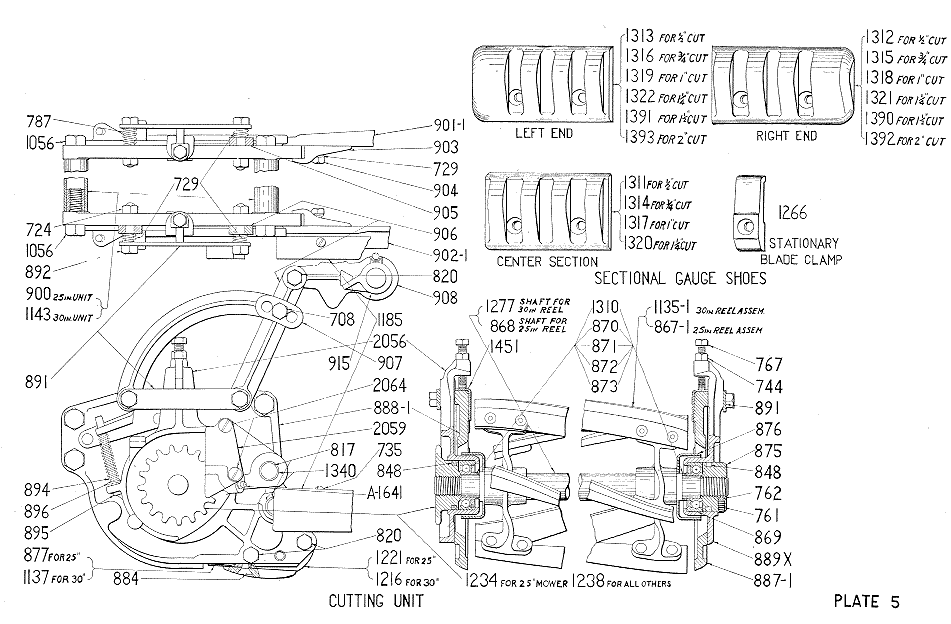

| Plate 5 | Cutting Unit , Sectional Gauges Shoes |

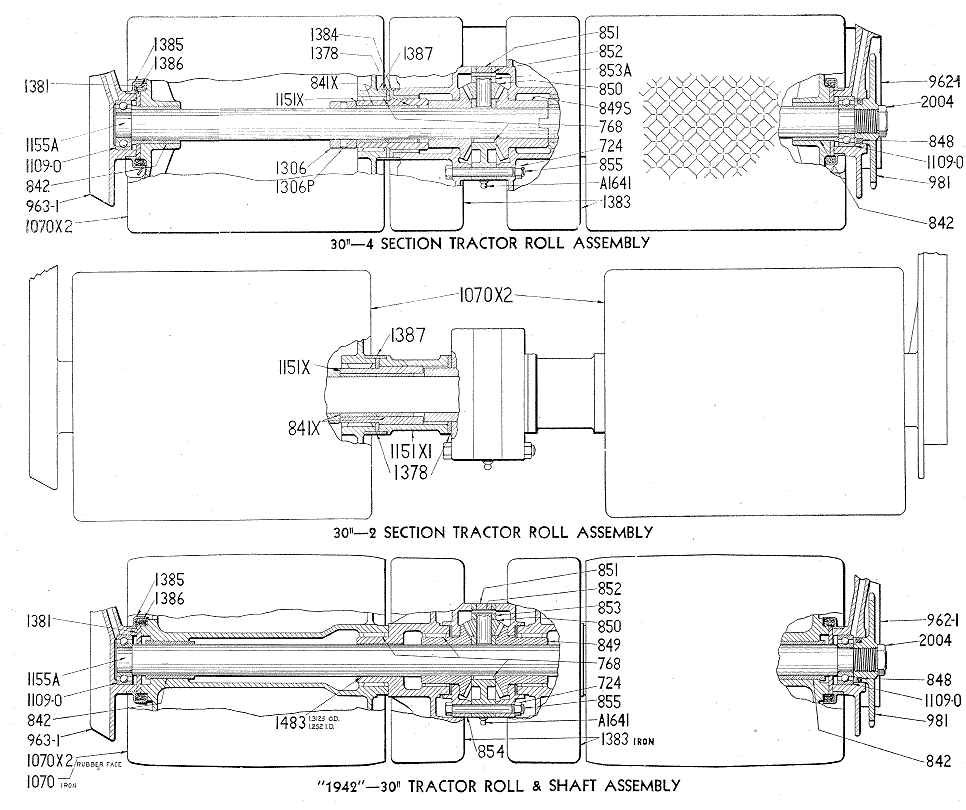

| Plate 6 | 30"-4 Section Tractor Roll Assembly , 30"-2 Section Tractor Roll Assembly , "1942"-30" Tractor Roll & Shaft Assembly |

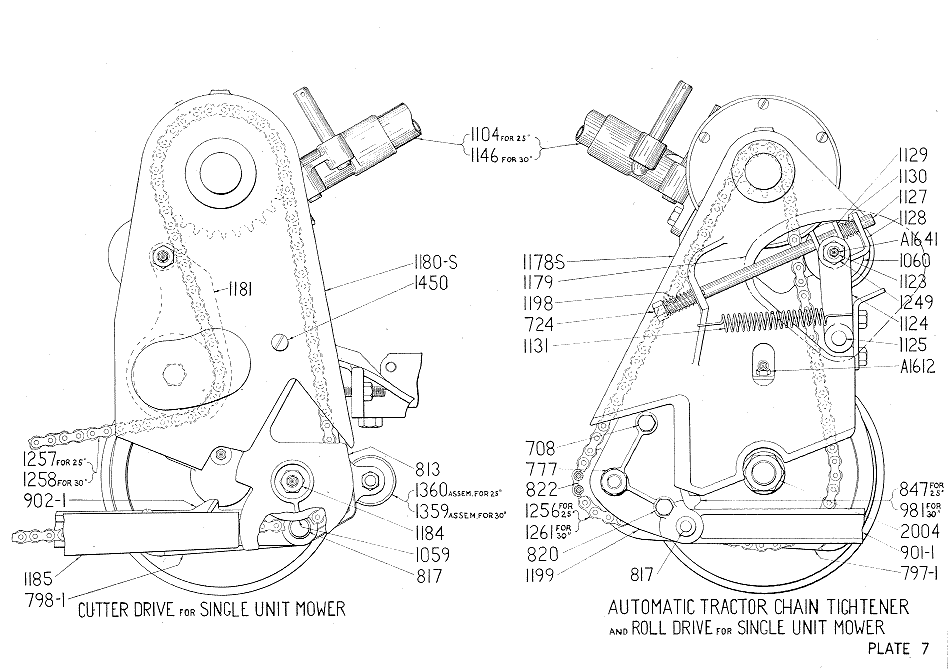

| Plate 7 | Cutter Drive for Single Unit Mower , Automatic Tractor Chain Tightener and Roll Drive for Single Unit Mower |

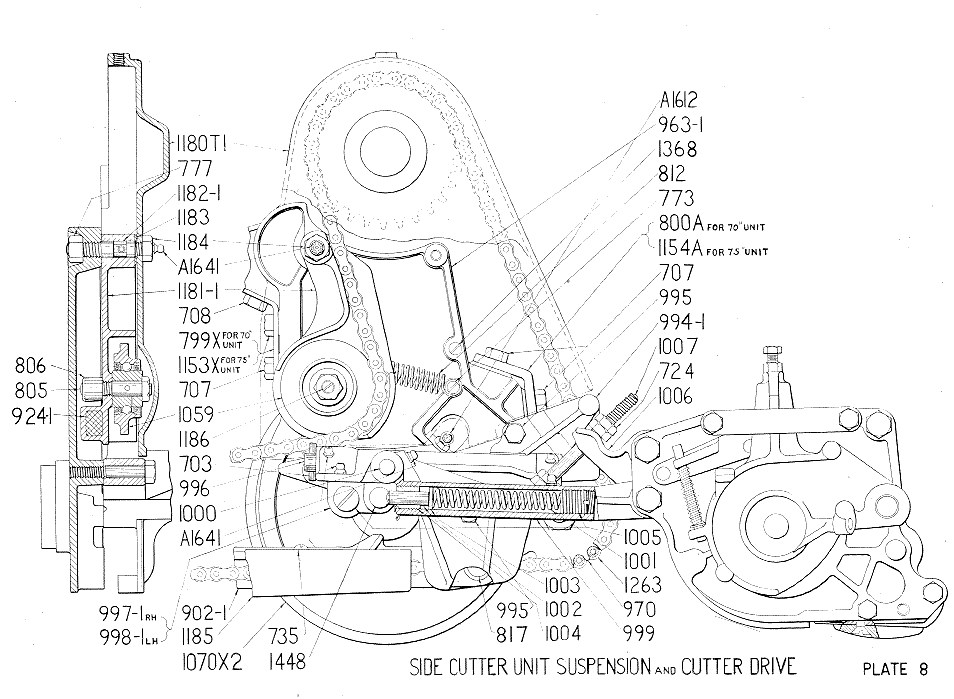

| Plate 8 | Side Cutter Unit Suspension and Cutter Drive |

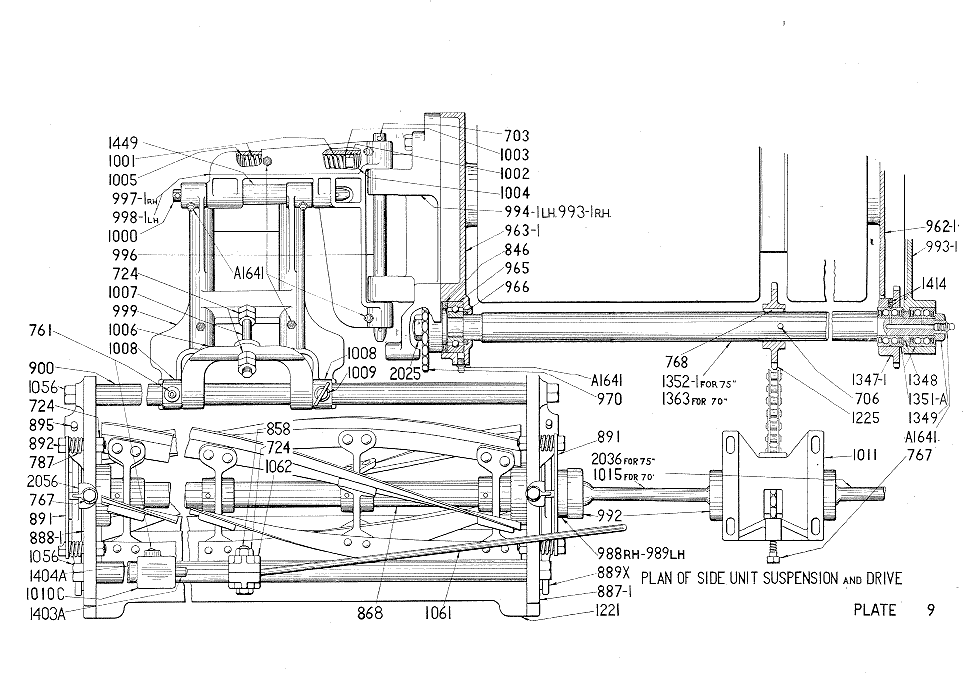

| Plate 9 | Plan of Side Unit Suspension and Drive |

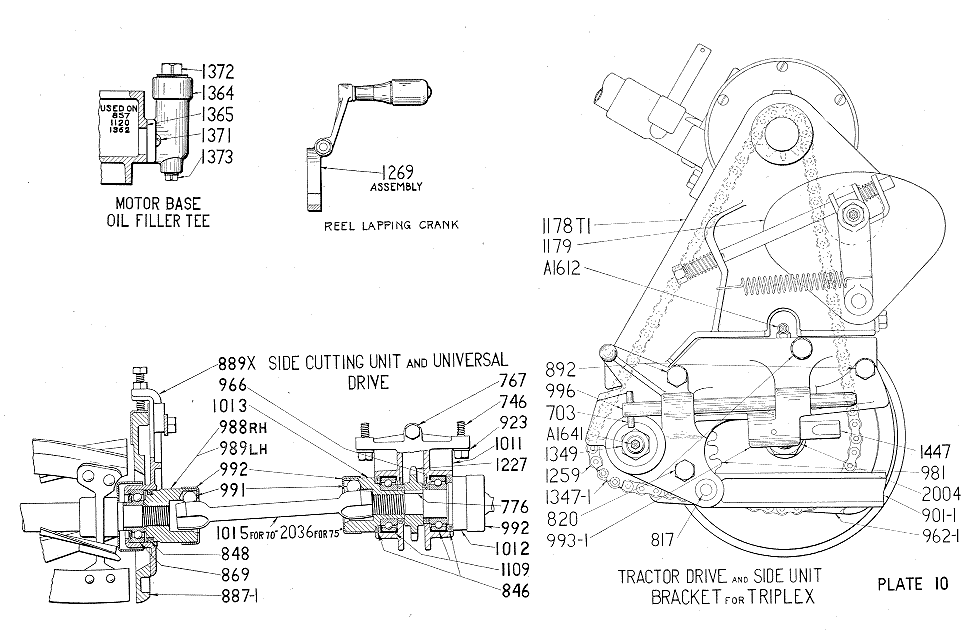

| Plate 10 | Motor Base Oil Filler Tee , Side Cutting Unit and Universal Drive , Tractor Drive and Side Unit Bracket for Triplex |

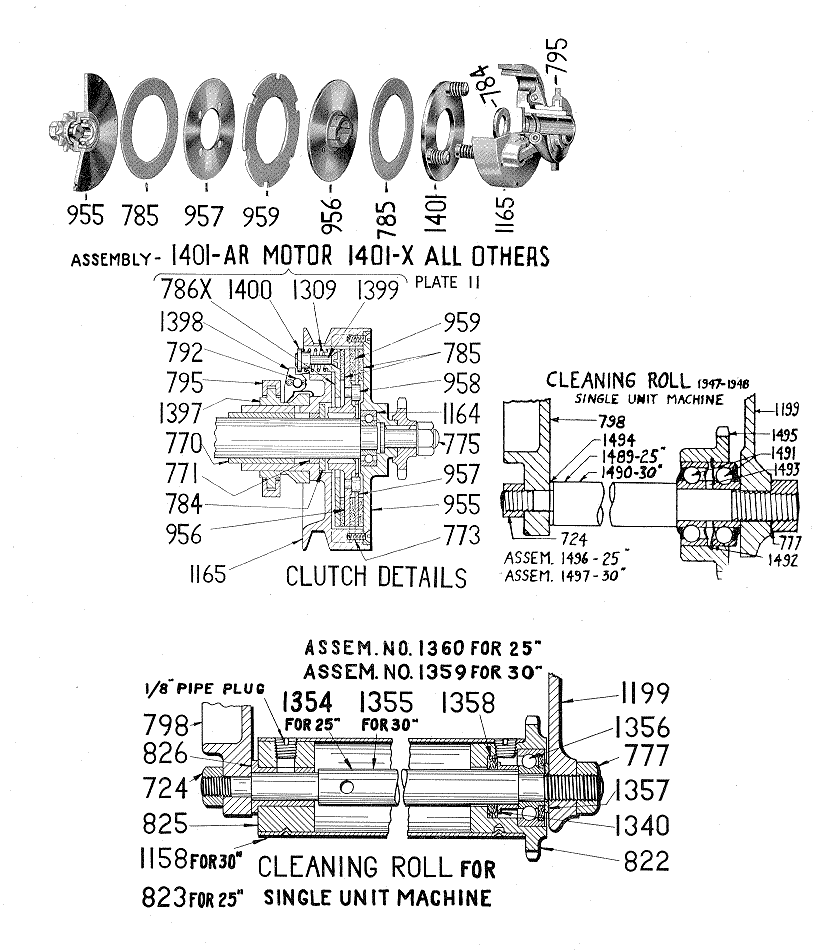

| Plate 11 | Assembly - 1401-AR Motor 1401-x All Others , Clutch Details , Cleaning Roll for Single Unit Machine |

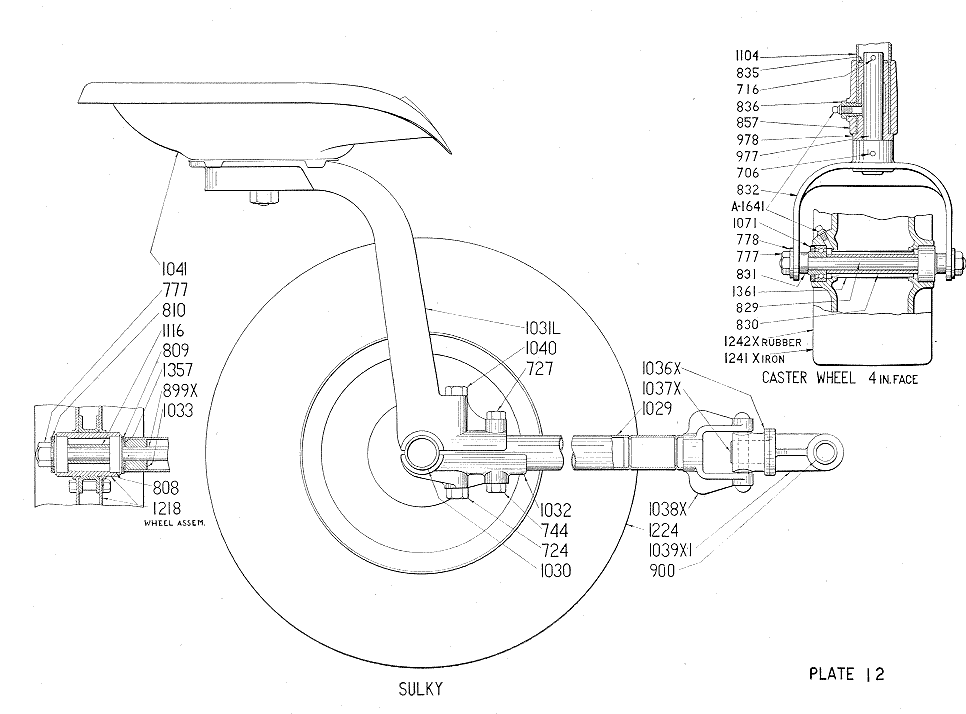

| Plate 12 | Sulky |

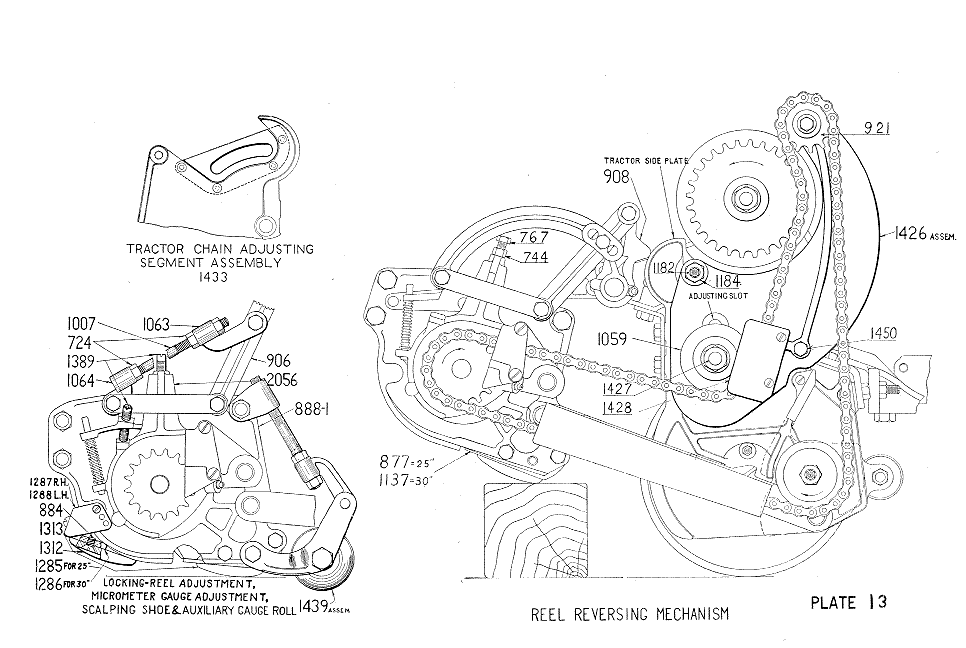

| Plate 13 | Tractor Chain Adjusting Segment Assembly 1433 , Locking - Reel Adjustment, Micrometer Gauge Adjustment, Scalping Shoes & Auxiliary Gauge Roll , Reel Reversing Mechanism |
