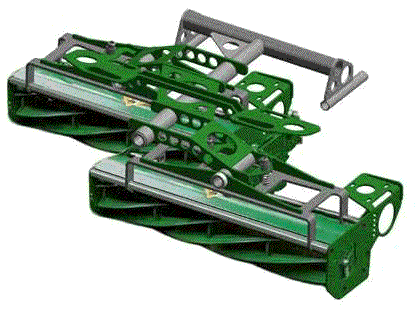

        Model 225 Duplex
        Reel Mower Attachment |



  |


        |

        Features

          - Allows Walker Owners/Operators the full benefits of a ride-on
          reel mower at the cost of an attachment. These benefits include:

          - Innovative design allows for full width mowing.

          - Reel unit shift to tractor width for gate entry and storage.

          - Reel guards allow the options of front throw or rear discharge
          with simple adjustment.

          - Incorporates Locke's quick adjust height system.( no tools )

          - Attaches easily like walker deck.

          - Saves time! Covers 3 times as much ground as a walk behind reel
          mower.

          - Full Floating and counterbalanced, reel units do not use caster
          or rollers in front. (This prevents tracking or disturbing of grass
          before cutting.)

          - Quick and precise adjustment of reel to bed knife.

          - Fully adjustable spring loaded reel units reduce the
          possibility of reel damage by passing debris.

          - Uses no hydraulics or external power source.


         |




       |





        |
         Specifications  |


        | Width of cut |
        48" (1219mm) |


        | Weight   |
        182lbs (83kg) |


        | Height of cut  |
        1/2" - 3" by 1/4" inc. (13mm - 76mm by 6.35mm inc) |


        | frequency of cut |
        Variable |


        | Transportation Width |
        40" (1016mm) |


        | Blades per reel |
        6 or 8 |


        | Reel Diameter |
        6.125" (155 mm) |


        | Reel drive |
        PTO Shaft |


        | Cutting Units |
        (2) 25" Locke with full width rear rollers |



                 |





           |
